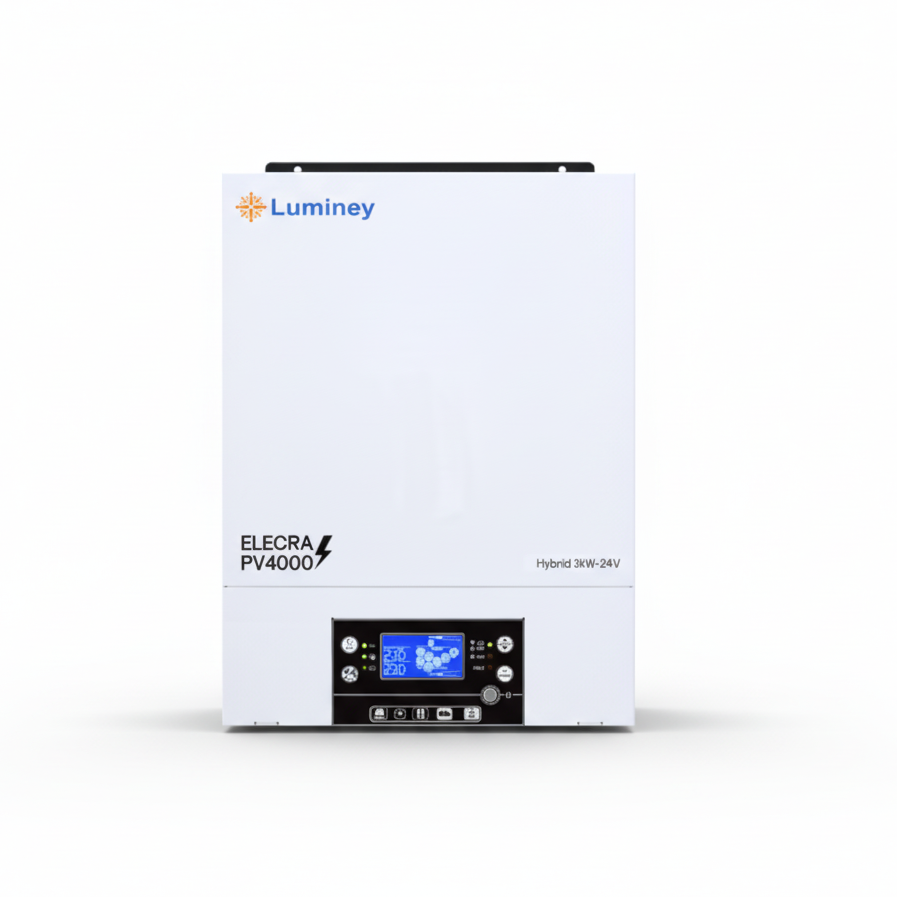

Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave | Dual Output

Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave | Dual Output

SKU: AR-002750
Product Type: inverter
Rs.72,000.00
Rs.72,000.00
Rs.72,000.00
Save Rs.0.00
Subtotal: Rs.72,000.00

12 Years Warranty (1 Year Parts + Service Warranty + 11 Years Service Warranty)

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave | Dual Output

Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave | Dual Output

Rs.72,000.00
Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave | Dual Output

Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave | Dual Output

Rs.72,000.00
Description

Power your home or office efficiently with the Luminey Elecra 3KW PV4000 Hybrid Inverter ( 24V Single Phase). Designed with advanced MPPT solar charging technology, this inverter delivers pure sine wave output, fast transfer time, and up to 93% efficiency. Ideal for reliable backup and solar energy conversion, it supports both AC and solar charging with smart communication interfaces for monitoring and control.

Key Features:

  • 3000VA / 3000W hybrid inverter with 24VDC battery system

  • MPPT solar charger supports up to 4000W PV input (120–450VDC)

  • High efficiency: 90%–93% with pure sine wave output

  • Fast 15–20ms transfer time for uninterrupted power supply

  • Dual output design with USB/RS232/RS485/WiFi/Dry-contact connectivity

  • Compact size: 115 × 300 × 400 mm, lightweight 9 kg design

  • Operating temperature: -10°C to 50°C, humidity 5%–95% (non-condensing)

Category Specification
Model Elecra PV4000
RATED POWER 6000VA
INPUT
Voltage 230VAC ± 10%
Selectable Voltage Range 170-280VAC (For Personal Computers) / 90-280VAC (For Home Appliances)
Frequency Range 50Hz / 60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC
Surge Power 3000VA / 3000W
Efficiency (Peak) 90% ~ 93%
Transfer Time 15 ms (For Personal Computers) / 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Dual Outputs Yes
BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Overcharge Protection 33VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 4000W
MPP Range @ Operating Voltage 120 ~ 450VDC
Maximum PV Array Open Circuit Voltage 500VDC
Maximum Solar Charge Current 100A
Maximum AC Charge Current 100A
Maximum Charge Current 100A
PHYSICAL
Dimension (D × W × H) 115 × 300 × 400 mm
Net Weight 9 kg
Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
