Knox Rack Wall 8 - 51.2V 150AH IP20 Touch LCD Display Lithium-Ion Battery – 7.68kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 8 - 51.2V 150AH IP20 Touch LCD Display Lithium-Ion Battery – 7.68kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

SKU: AR-002414
Product Type: Battery
Rs.370,000.00
Rs.390,000.00
Rs.370,000.00
Save Rs.20,000.00
Subtotal: Rs.370,000.00
  • Alladin Store

5 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Rack Wall 8 - 51.2V 150AH IP20 Touch LCD Display Lithium-Ion Battery – 7.68kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 8 - 51.2V 150AH IP20 Touch LCD Display Lithium-Ion Battery – 7.68kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Rs.390,000.00 Rs.370,000.00
Knox Rack Wall 8 - 51.2V 150AH IP20 Touch LCD Display Lithium-Ion Battery – 7.68kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 8 - 51.2V 150AH IP20 Touch LCD Display Lithium-Ion Battery – 7.68kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Rs.390,000.00 Rs.370,000.00
Description

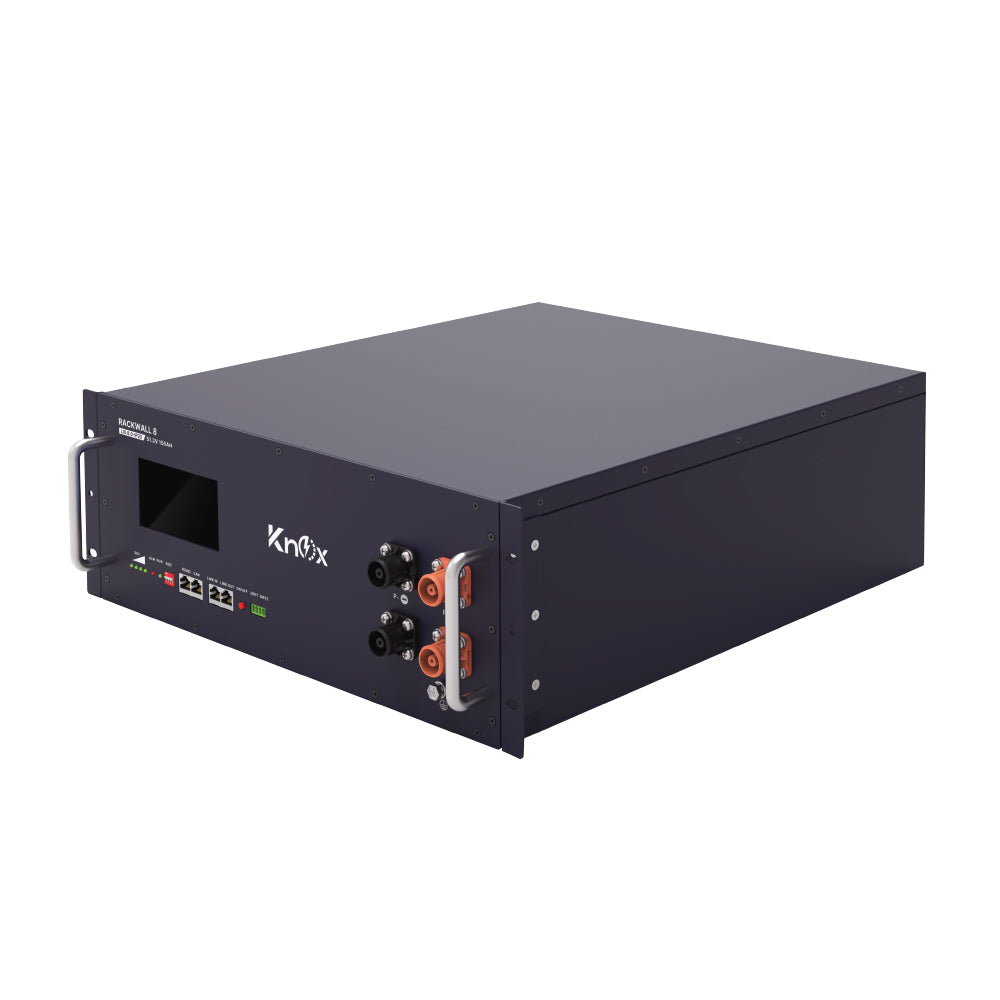

Knox Rack Wall 8 – 5.12kWh 51.2V 150Ah LiFePO4 Battery (Wall-Mounted & Rack-Mount)

The Knox Rack Wall 8 is a high-performance 51.2V, 150Ah lithium-iron-phosphate (LiFePO4) battery, designed for safe and scalable energy storage. With 7680Wh total energy, it supports up to 15 units in parallel, but does not support series connection. Engineered with >6000 life cycles and a 10-year design life, it features built-in BMS, RS485/CAN communication ports, and a 4.3” touch LCD for real-time monitoring. The battery is housed in a standard 19” rack-mount or wall-mounted enclosure, making it easy to install in homes, commercial systems, or off-grid solar setups. Designed for reliable, long-term energy needs.

Key Features

  • Smart BMS with LCD Display: 4.3" touch screen for SOC, alarms, and operational status
  • High Power Output: 150A continuous, 180A pulse discharge, with 7680Wh total energy
  • Advanced Communication: RS485, CAN, Link-in/out for inverter & battery communication
  • LiFePO4 Cells with Long Life: >6000 cycles, maintenance-free, safe chemistry
  • Flexible Mounting Options: Wall-mounted or 19” rack design; parallel up to 15 units
Technical Data Sheet
Model LIO 8.0-IP20
Nominal Voltage [V] 51.2
Nominal Capacity [Ah] 150
Total Energy [Wh] 7680
Dimension (W*D*H, mm) 442*520*175
Weight [Kg] 65.0
Max. Charging Current [A] 150
Max. Discharging Current [A] 150
Pulse Discharge Current 180A @2S
Charging Voltage [V] 55.2~57.6
End of Dicharge Voltage [V] 48
Operation Humidity 0~95% RH (No condensing)
Operating Temperature Range Charge: 0 ~ +55°C;
Discharge: -20 ~ +55°C
Cycle Life >6000
Designed Calendar Life 10 Years
Communication interface For inverter : RS485, CAN
For battery to battery: LINK-IN, LINK-OUT
Protection Over voltage, Low voltage, Over current,
Over Temperature, Low Temperature, Short circuit
Parallel Support Yes, Max. 15 Sets
Series Support Not support
