Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery – 10.2kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery – 10.2kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

SKU: AR-002415
Product Type: Battery
Rs.480,000.00
Rs.499,000.00
Rs.480,000.00
Save Rs.19,000.00
Subtotal: Rs.480,000.00
  • Alladin Store

5 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery – 10.2kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery – 10.2kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Rs.499,000.00 Rs.480,000.00
Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery – 10.2kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery – 10.2kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Rs.499,000.00 Rs.480,000.00
Description

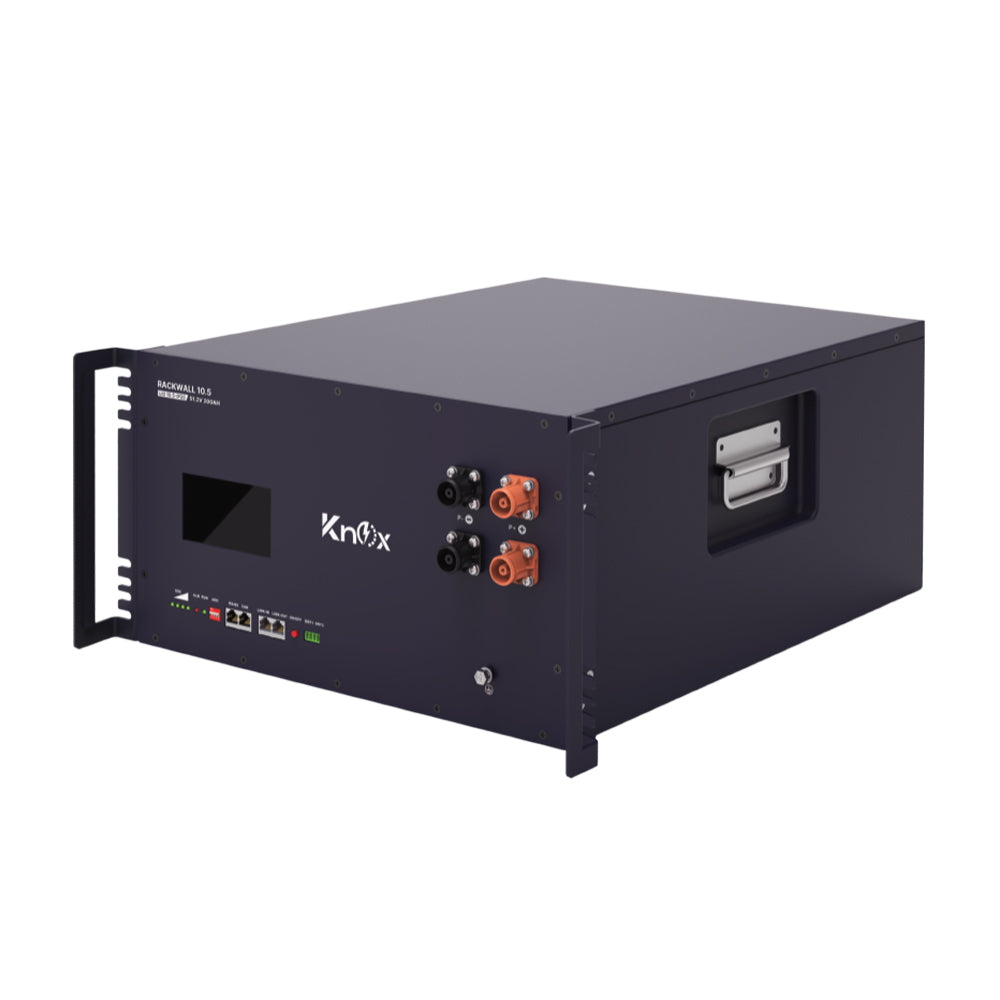

Knox Rack Wall 10.5 – 10.24kWh 51.2V 200Ah LiFePO4 Battery (Wall-Mounted & Rack-Mount Design)

The Knox Rack Wall 10.5 is a robust 51.2V 200Ah lithium iron phosphate (LiFePO4) battery delivering 10.24kWh of total energy for residential, commercial, and off-grid solar energy storage. Designed for safety and high efficiency, it features >6000 cycle life, 200A charge/discharge current, and RS485/CAN communication for seamless inverter integration. A 4.3” touch LCD provides real-time monitoring of system status, while the modular design supports up to 15 units in parallel (series not supported). The battery’s standard 19” rack size and IP20 wall-mountable enclosure make installation easy and flexible for various applications.

Key Features

  • Integrated Smart BMS & LCD: 4.3” touch display for SOC, alarms, and system health
  • Powerful Energy Output: 200A continuous current and 10.24kWh capacity
  • Universal Compatibility: RS485, CAN, Link-In/Out ports for inverter and battery chains
  • Long-Life LiFePO4 Cells: >6000 cycles with 10-year design life
  • Scalable & Flexible Mounting: Parallel up to 15 units; standard rack or wall-mounted setup
Model LIO 10.5-IP20
Nominal Voltage [V] 51.2
Nominal Capacity [Ah] 200
Total Energy [Wh] 10240
Dimension (W*D*H, mm) 442*550*250
Weight [Kg] 83.0
Max. Charging Current [A] 200
Max. Discharging Current [A] 200
Pulse Discharge Current 240A @2S
Charging Voltage [V] 55.2~57.6
End of Dicharge Voltage [V] 48
Operation Humidity 0~95% RH (No condensing)
Operating Temperature Range Charge: 0 ~ +55°C;
Discharge: -20 ~ +55°C
Cycle Life >6000
Designed Calendar Life 10 Years
Communication interface For inverter : RS485, CAN
For battery to battery: LINK-IN, LINK-OUT
Protection Over voltage, Low voltage, Over current,
Over Temperature, Low Temperature, Short circuit
Parallel Support Yes, Max. 15 Sets
Series Support Not support
