Knox Power Wall 6.11 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 6.11 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

SKU: AR-002413
Product Type: Battery
Rs.245,000.00
Rs.280,000.00
Rs.245,000.00
Save Rs.35,000.00
Subtotal: Rs.245,000.00
  • Alladin Store

3 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Power Wall 6.11 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 6.11 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Rs.280,000.00 Rs.245,000.00
Knox Power Wall 6.11 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 6.11 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Rs.280,000.00 Rs.245,000.00
Description

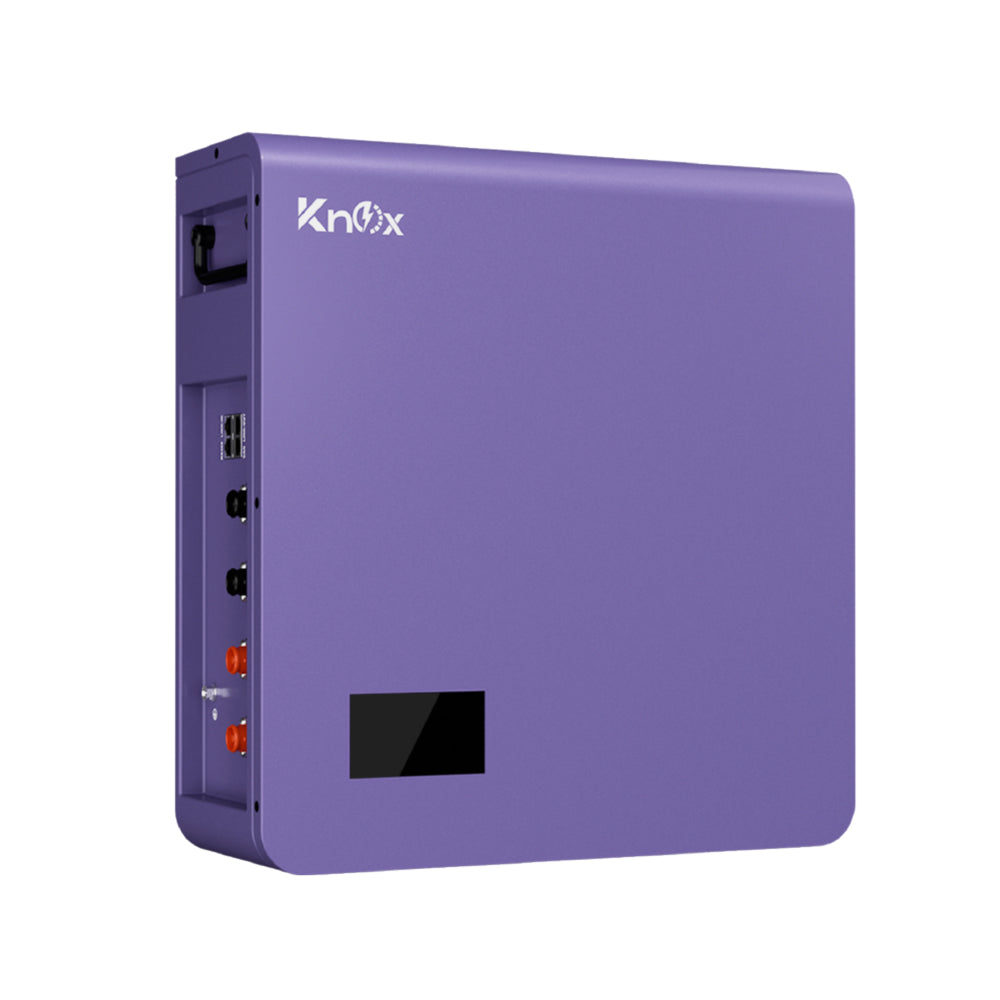

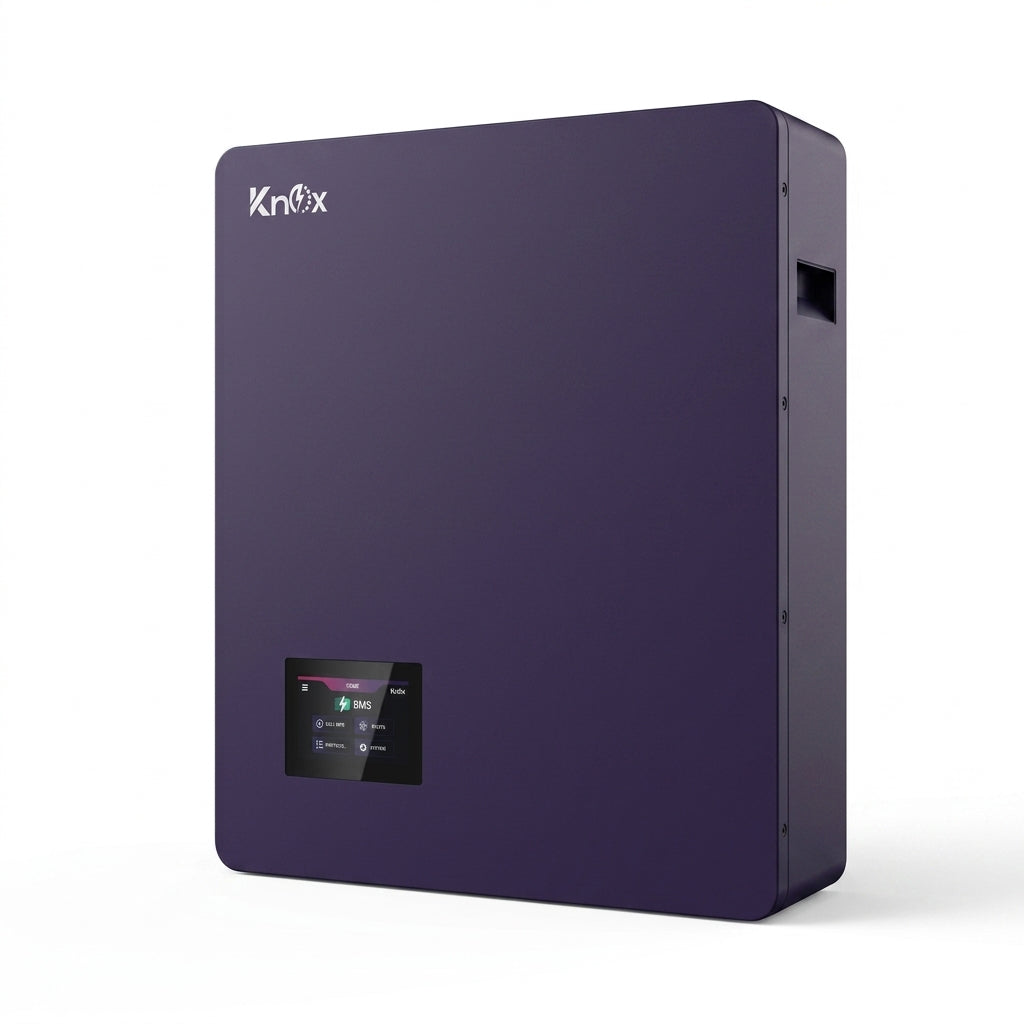

The Knox Power Wall 6.11 is a 5.12kWh, 51.2V 100Ah wall-mounted lithium-ion battery designed for safe, scalable, and efficient energy storage. Built with long-life LiFePO4 cells and an advanced BMS, it supports up to 15 units in parallel and integrates easily with major inverter brands via RS485 and CAN. Its sleek IP20-rated design features a 4.3" touch LCD screen for easy monitoring, wide operating temperatures, and zero maintenance, making it ideal for solar, backup, or off-grid applications.

  • High Performance Energy Storage – 5.12kWh capacity (51.2V, 100Ah) for residential or commercial use
  • Superior Safety – Built-in BMS with protections: OVP, LVP, OCP, OTP, LTP, and short-circuit
  • Long Battery Life – >6000 cycles with a 10-year calendar life
  • Scalable Design – Supports up to 15 units in parallel for expanded energy needs
  • Compact Wall-Mount Build – Sleek IP20-rated housing with quick lock and press-to-release terminals
  • Smart Monitoring – 4.3" LCD touch screen + PC software for full system diagnostics
  • Inverter Compatibility – RS485 & CAN communication; supports protocol switching via LCD
Model LIO 5.32-IP20
Nominal Voltage [V] 51.2
Nominal Capacity [Ah] 100
Total Energy [Wh] 5120
Dimension (W*D*H, mm) 442*470*160
Weight [Kg] 46.0
Max. Charging Current [A] 100
Max. Discharging Current [A] 100
Pulse Discharge Current 120A @2S
Charging Voltage [V] 55.2~57.6
End of Discharge Voltage [V] 48
Operation Humidity 0~95% RH (No condensing)
Operating Temperature Range Charge: 0 ~ +55°C;
Discharge: -20 ~ +55°C
Cycle Life^{(1)} >6000
Designed Calendar Life 10 Years
Communication interface For inverter : RS485, CAN
For battery to battery: LINK-IN, LINK-OUT
Protection Over voltage, Low voltage, Over current,
Over Temperature, Low Temperature, Short circuit
Parallel Support Yes, Max. 15 Sets
Series Support Not support
