Knox Power Wall 6.0 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 6.0 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

SKU: AR-002412
Product Type: Battery
Rs.199,999.00
Rs.270,000.00
Rs.199,999.00
Save Rs.70,001.00
Subtotal: Rs.199,999.00

5 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Power Wall 6.0 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 6.0 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Rs.270,000.00 Rs.199,999.00
Knox Power Wall 6.0 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 6.0 - 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted Energy Storage Solution

Rs.270,000.00 Rs.199,999.00
Description

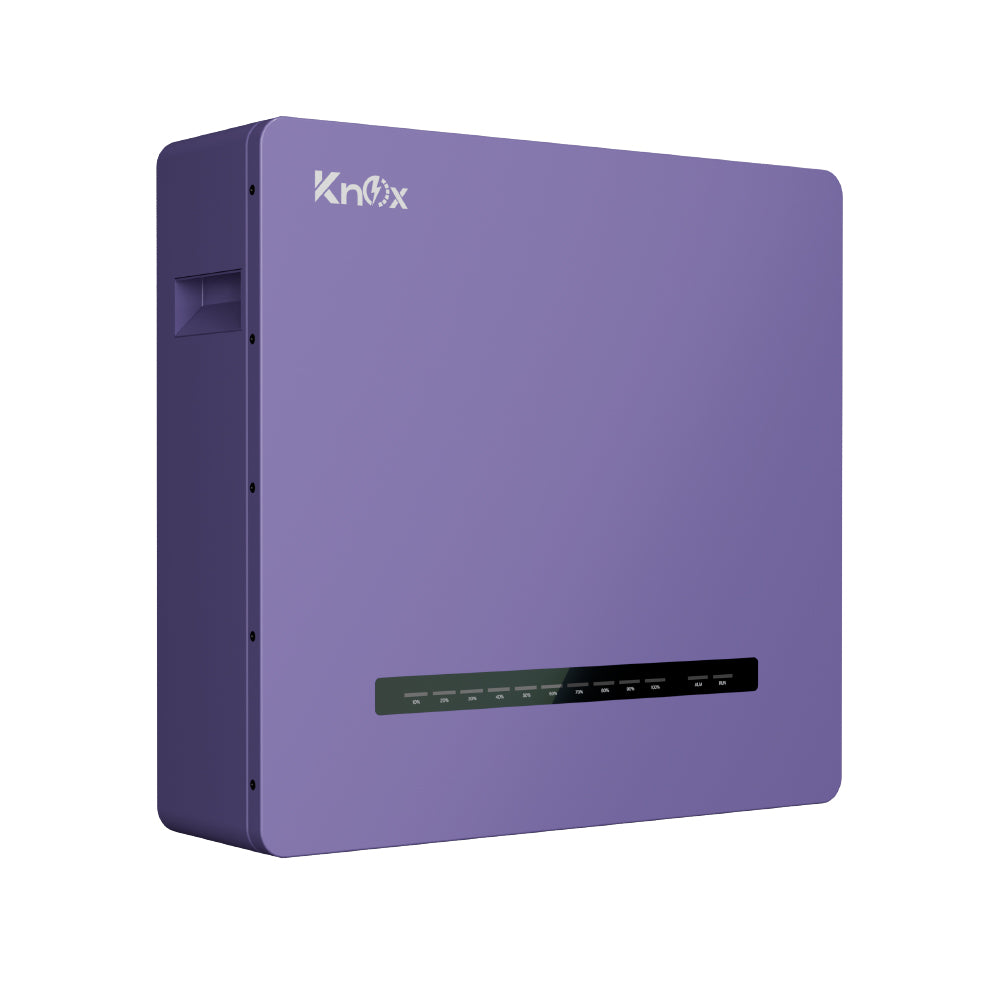

Knox Power Wall 6.0 – 51.2V 100Ah Lithium-Ion Battery | 5.12kWh Wall-Mounted Energy Storage Solution

The Knox Power Wall 6.0 is a high-performance 5.12kWh LiFePO4 energy storage battery, designed for reliable and efficient power in residential or commercial systems. Built with A-grade brand-new prismatic LiFePO4 cells, this wall-mounted unit delivers long-lasting energy storage with advanced safety features and a sleek metal casing for improved heat dissipation. With over 6000 cycles at 80% depth of discharge, smart protection systems, and seamless inverter compatibility, it’s the ideal choice for solar energy storage or backup power.

Key Features:

  • Energy Storage: 5.12kWh (51.2V, 100Ah)
  • Battery Cells: A-grade prismatic LiFePO4 cells for safety and longevity
  • Cycle Life: >6000 cycles @ 80% DoD (25°C, 0.5C)
  • Smart Protection: Overcharge, over-discharge, over/low temperature, overcurrent, and short circuit protection
  • Cell Balancing: Built-in cell balancing function for stable performance
  • Display: Low-power, high-brightness LCD with long visual range
  • Durable Build: Metal casing for superior heat dissipation and safety
  • Communication: RS485, RS232, CAN – compatible with major inverters
  • Mounting: Space-saving wall-mounted design
  • Scalability: Connect up to 8 units in parallel
MODEL LIO 5.20-IP20
ELECTRICAL PARAMETER
Battery Type LiFePO4
Nominal Voltage (V) 51.2
Nominal Capacity (AH) 100
Energy (WH) 5120
Pack Mode 16S1P
Continuous Discharge Current (A) 100
Charge Cut-off Voltage (V) 57.6
Discharge Cut-off Voltage (V) 41.6
Max. Charge Current (A) 100
Max. Discharge Current (A) 100
Peak Discharge Current (A) 120
Recommend Discharge Current (A) 50
Recommend Discharge Depth (%) 80
Cycle Life > 6000 cycles (25°C, 0.5C) @ 80% DOD
Function ---
Communication RS485/RS232/CAN
Display LED
Mounting Wall-mounted
ENVIRONMENTAL PARAMETER
Charge & Discharge Temperature (°C) Charge: 0°C ~ +55°C / Discharge: -20°C ~ +60°C
Optimal Storage Temperature (°C) 5°C ~ +35°C
Relative Humidity 40% ~ 80%
Ingress Protection IP20
 MECHANICAL PARAMETER
Terminal M6
Dimensions (L*W*H) (mm) 533*500*150
Weight (Kg) 45.1 ± 0.5
Certificate UN38.3 MSDS
