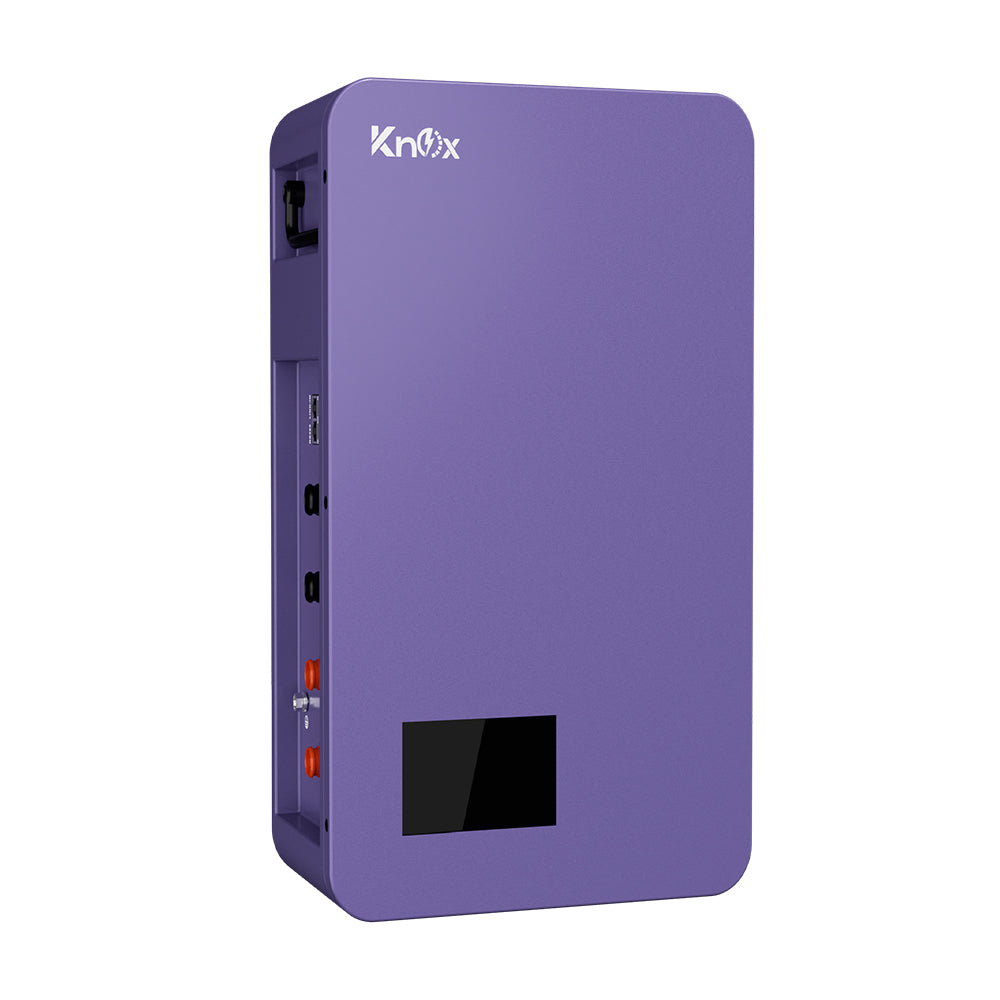

Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution

SKU: AR-002411
Product Type: Battery
Rs.140,000.00
Rs.160,000.00
Rs.140,000.00
Save Rs.20,000.00
Subtotal: Rs.140,000.00
  • Alladin Store

3 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution

Rs.160,000.00 Rs.140,000.00
Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution

Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution

Rs.160,000.00 Rs.140,000.00
Description

Knox Power Wall 3.1 – 25.6V 100Ah Lithium-Ion Battery | 2.56kWh Wall-Mounted Energy Storage Solution

Maximize your energy independence with the Knox Power Wall 3.1, a high-performance 25.6V 100Ah Lithium Iron Phosphate (LiFePO4) battery engineered for safe, reliable, and scalable home or commercial energy storage.

Whether you're building a solar power system or need a backup solution for your home or business, the Knox Power Wall 3.1 delivers exceptional efficiency and safety in a compact, wall-mounted design.

Key Features:

  • Total Energy Output: 2.56 kWh (25.6V, 100Ah)
  • Advanced Battery Management System (BMS): Real-time protection against over-voltage, low-voltage, overcurrent, overheating, and short circuits.
  • Premium LiFePO4 Cells: Long-life prismatic cells designed specifically for energy storage—safe, stable, and environmentally friendly.
  • >6000 Cycle Life: Long-lasting performance with over 6000 charge/discharge cycles and a 10-year calendar life.
  • Flexible Scalability: Connect up to 8 units in parallel for expanded storage capacity.
  • Universal Inverter Compatibility: Communicates seamlessly with leading inverter brands via RS485 or CAN protocols; inverter protocol easily adjustable via 4.3” touch LCD.
  • User-Friendly Installation: Wall-mounted with quick lock terminals and press-to-release design—compact, flexible, and maintenance-free.
  • All-Weather Operation: Wide temperature tolerance from -20°C to +55°C with full performance in diverse climates.

Technical Specifications:

Specification Details
Model LIO 2.66-IP20
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Total Energy 2560Wh (2.56kWh)
Dimensions (W×D×H) 395 × 470 × 160 mm
Weight 28.0 kg
Max Charging Current 100A
Max Discharging Current 100A
Pulse Discharge Current 120A (for 2 seconds)
Charging Voltage Range 27.6V – 28.8V
End-of-Discharge Voltage 24V
Cycle Life >6000 cycles
Designed Life Span 10 years
Operating Temp Range Charge: 0°C ~ +55°C / Discharge: -20°C ~ +55°C
Humidity 0%–95% RH (non-condensing)
Communication Interfaces RS485 & CAN (Inverter) / LINK-IN, LINK-OUT (Battery)
Certifications IEC62619, UL1973, UL9540A, CE, ROHS, UN38.3, MSDS
Protection Features OVP, LVP, OCP, OTP, LTP, Short Circuit
Mounting Type Wall-Mounted
Parallel Support Yes, up to 8 units
Series Support Not Supported
