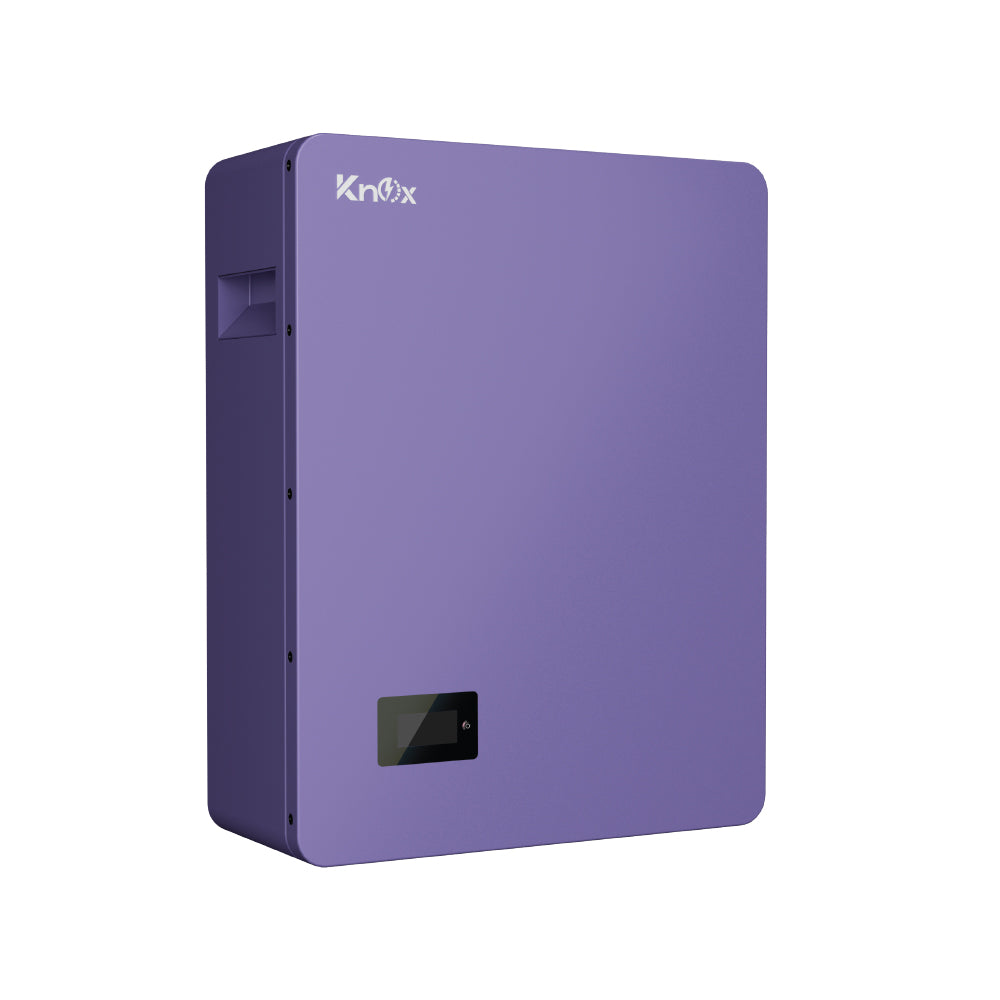

Purple Knox device on a white background
Purple Knox device on a white background

Knox Power Wall 3.0 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution With Series Support

SKU: AR-002410
Product Type: Battery
Rs.135,000.00
Rs.145,000.00
Rs.135,000.00
Save Rs.10,000.00
Subtotal: Rs.135,000.00
  • Alladin Store

3 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Purple Knox device on a white background

Knox Power Wall 3.0 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution With Series Support

Rs.145,000.00 Rs.135,000.00
Purple Knox device on a white background

Knox Power Wall 3.0 - 25.6V 100AH IP20 Lithium-Ion Battery – 2.56 kWh Wall-Mounted Energy Storage Solution With Series Support

Rs.145,000.00 Rs.135,000.00
Description

Knox Power Wall 3.0 – 25.6V 100Ah IP20 Lithium-Ion Battery | 2.56kWh Wall-Mounted Energy Storage Solution

The Knox Power Wall 3.0 is a high-performance 25.6V 100Ah LiFePO4 battery pack offering a total energy capacity of 2.56kWh, ideal for solar energy storage, backup power, and off-grid applications. Built with brand-new A-grade prismatic LiFePO₄ cells, this compact and safe wall-mounted battery is engineered for long service life and exceptional reliability.

With over 6000 cycles at 80% DOD, advanced protection circuits, and a smart LCD display, this battery ensures intelligent power management for both residential and commercial use.

Key Features:

  • Reliable Performance: Over 6000 cycles for long-term savings
  • Smart Monitoring: Built-in LCD screen with real-time battery data
  • Compact & Scalable: Stack up to 4 units in parallel or 2 in series
  • Battery Type: LiFePO₄ (Lithium Iron Phosphate)
  • Energy Storage: 2.56kWh (25.6V 100Ah)
  • Battery Life: 6000+ cycles @ 80% DOD (25°C, 0.5C)

Technical Specifications:

Parameter Value
Model LIO 2.56-IP20
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Energy 2560Wh
Battery Configuration 8S1P
Continuous Discharge Current 100A
Max Discharge Current (Peak) 120A
Recommended Discharge Current 50A
Max Charge/Discharge Current 100A
Charge Cut-off Voltage 28.8V
Discharge Cut-off Voltage 20.8V
Recommended DOD 80%
Cycle Life >6000 cycles
Communication RS485
Mounting Wall-mounted
Display LCD Screen
Ingress Protection IP20
Working Temperature Charge: 0°C to +55°C / Discharge: -20°C to +60°C
Storage Temp (Optimal) 5°C to +35°C
Humidity Range 40%–80% RH
Terminal Type M6
Dimensions (LxWxH) 350 × 180 × 450 mm
Weight 25.1 ± 0.5 kg
Scalability Up to 2 in series, 4 in parallel
