Knox Krypton 9000 6.2KW Hybrid Solar Inverter With PV 9000

Knox Krypton 9000 6.2KW Hybrid Solar Inverter With PV 9000

SKU: AR-002351
Product Type: solar inverter
Rs.160,000.00
Rs.189,900.00
Rs.160,000.00
Save Rs.29,900.00
Subtotal: Rs.160,000.00
  • Alladin Store

1 Year Complete + 10 Year's Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Krypton 9000 6.2KW Hybrid Solar Inverter With PV 9000

Knox Krypton 9000 6.2KW Hybrid Solar Inverter With PV 9000

Rs.189,900.00 Rs.160,000.00
Knox Krypton 9000 6.2KW Hybrid Solar Inverter With PV 9000

Knox Krypton 9000 6.2KW Hybrid Solar Inverter With PV 9000

Rs.189,900.00 Rs.160,000.00
Description

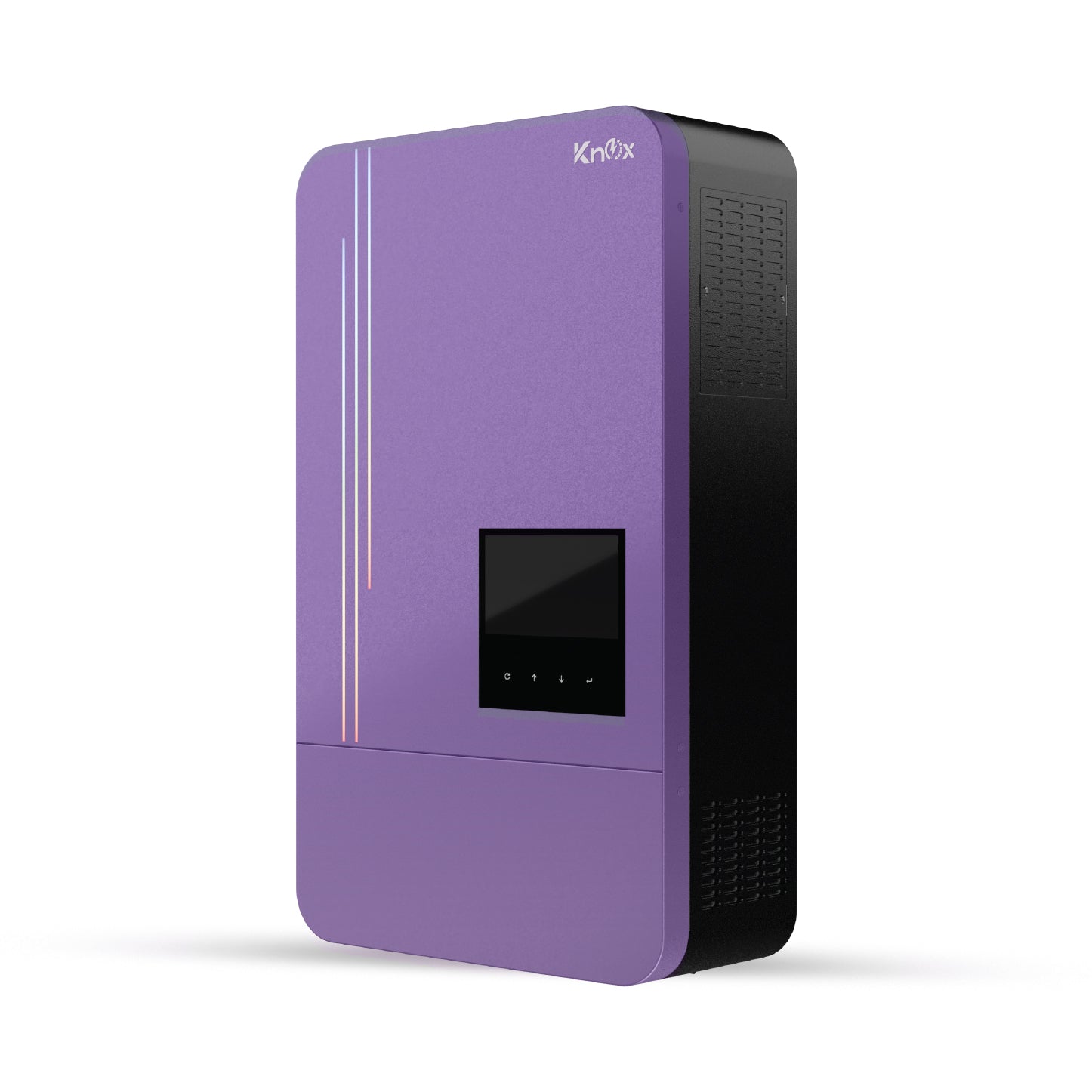

The Knox Krypton 6.2kW 9000W Hybrid Solar Inverter delivers efficient, flexible power for homes and businesses, supporting both grid-tie and off-grid use. It features 6200W output, 9000W PV input, MPPT charging (up to 142A), and 48V battery support. With pure sine wave output, 95% efficiency, and parallel support for up to 9 units, it’s built for reliability. Smart interfaces and IEC certifications ensure safe, scalable operation.

Key Features:

  • 6.2kW rated output with 9000W maximum PV input power
  • Hybrid functionality: Supports grid-tie and off-grid operations
  • Advanced MPPT solar charger with 142A maximum charging current
  • High efficiency: 95% DC/AC conversion
  • Pure sine wave output for sensitive electronics
  • Parallel capability for up to 9 units
  • Wide operating temperature range: -10°C to 50°C
  • Certified to IEC 61683 and IEC 62109-1/2 standards

Technical Specifications

KNOX Krypton 9000 Specifications
Model 6.2kW-48-PV 9000-T W/N
Phase Single Phase
Maximum PV Input Power 9000W
Rated Output Power 6200W
Battery - PV Output Power 6200W
GRID-TIE OPERATION
Nominal DC Voltage / Maximum DC Voltage 500 VDC
Start-up Voltage / Initial Feeding Voltage 60 VDC / 150 VDC
MPPT Voltage Range 120 VDC - 430 VDC
Number of MPP Trackers / Maximum Input Current 1 / 30A (Max 40A)
Nominal Output Voltage (AC) 220 / 230 / 240 VAC
Output Voltage Range 184-264.5 VAC or 195.5-253 VAC (Selectable)
Nominal Output Current 28.26A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 95%
OFF-GRID OPERATION
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC / 160 VAC
Acceptable Input Voltage Range 90-280 VAC or 170-280 VAC
Frequency Range 50 Hz / 60 Hz (Auto-sensing)
Nominal Output Voltage (Battery Mode) 230 VAC
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar Charger Type MPPT
Maximum Solar Charging Current 142A
Maximum AC Charging Current 20A
Maximum Charging Current 120A
Surge Power 12400 VA
GENERAL
Dimensions (D x W x H) 138 x 320 x 550 mm
Net Weight 13.7 kg
Parallel Function Yes, up to 9 Units
Communication Ports USB / RS232 / RS485 / WiFi / Dry-contact
Humidity 0-90% RH (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Certifications IEC 61683, IEC 62109-1, IEC 62109-2, Low Voltage Directive 2014/35/EU
