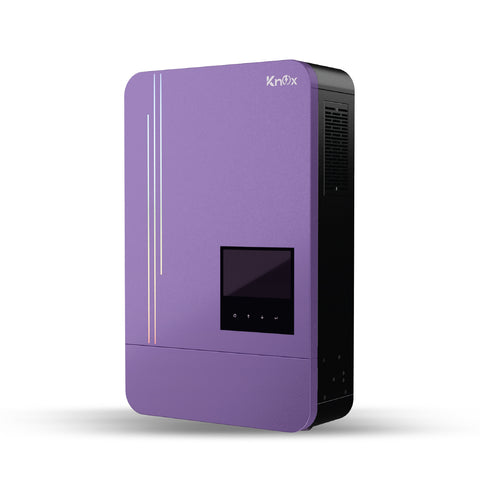

Knox Krypton 6500 4.5KW Hybrid Solar Inverter With PV 6500

Knox Krypton 6500 4.5KW Hybrid Solar Inverter With PV 6500

SKU: AR-002352
Product Type: solar inverter
Rs.125,000.00
Rs.159,000.00
Rs.125,000.00
Save Rs.34,000.00
Subtotal: Rs.125,000.00

1 Year Complete + 10 Year's Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Krypton 6500 4.5KW Hybrid Solar Inverter With PV 6500

Knox Krypton 6500 4.5KW Hybrid Solar Inverter With PV 6500

Rs.159,000.00 Rs.125,000.00
Knox Krypton 6500 4.5KW Hybrid Solar Inverter With PV 6500

Knox Krypton 6500 4.5KW Hybrid Solar Inverter With PV 6500

Rs.159,000.00 Rs.125,000.00
Description

Power your home or business in Pakistan with the KNOX Krypton 4.5kW Hybrid Solar Inverter – a high-efficiency solar solution with 6500W PV input, 4500W rated output, and 24V battery compatibility. Designed for both grid-tie and off-grid use, it features advanced MPPT technology, pure sine wave output, and smart connectivity (USB, RS232, RS485, WiFi) for reliable and uninterrupted solar energy performance.

Key Features:

  • 4.5kW rated output with 6500W maximum PV input power
  • Hybrid functionality: Supports grid-tie and off-grid operations
  • Advanced MPPT solar charger with 120A maximum charging current
  • High efficiency: 95% DC/AC conversion
  • Pure sine wave output for compatibility with sensitive devices
  • Wide input voltage range: 90-280 VAC
  • Operating temperature range: -10°C to 50°C
  • Certified to IEC 61683 and IEC 62109-1/2 standards

Technical Specifications

KNOX Krypton 6500 Specifications
Model 4.5kW-24-PV 6500-T W/N
Phase Single Phase
Maximum PV Input Power 6500W
Rated Output Power 4500W
Battery + PV Output Power 4500W
GRID-TIE OPERATION
Nominal DC Voltage / Maximum DC Voltage 500 VDC
Start-up Voltage / Initial Feeding Voltage 120 VDC / 60 VDC
MPPT Voltage Range 60-450 VDC
Number of MPP Trackers / Maximum Input Current 1 / 30A (Max 40A)
Nominal Output Voltage (AC) 220 / 230 / 240 VAC
Output Voltage Range 90-280 VAC (For Personal Computers); 180-280 VAC (For Home Appliances)
Nominal Output Current 19.6A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 95%
OFF-GRID OPERATION
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC / 180 VAC
Acceptable Input Voltage Range 90-280 VAC or 170-280 VAC
Frequency Range 50 Hz / 60 Hz (Auto-sensing)
Nominal Output Voltage (Battery Mode) 230 VAC
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 80%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
BATTERY & CHARGER
Nominal DC Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 32 VDC
Solar Charger Type MPPT
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum Charging Current 120A
Surge Power 9000 VA
GENERAL
Dimensions (D x W x H) 119 x 313.6 x 457.5 mm
Net Weight Not specified
Communication Ports USB / RS232 / RS485 / WiFi / Dry-contact
Humidity 0-90% RH (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Certifications IEC 61683, IEC 62109-1, IEC 62109-2
