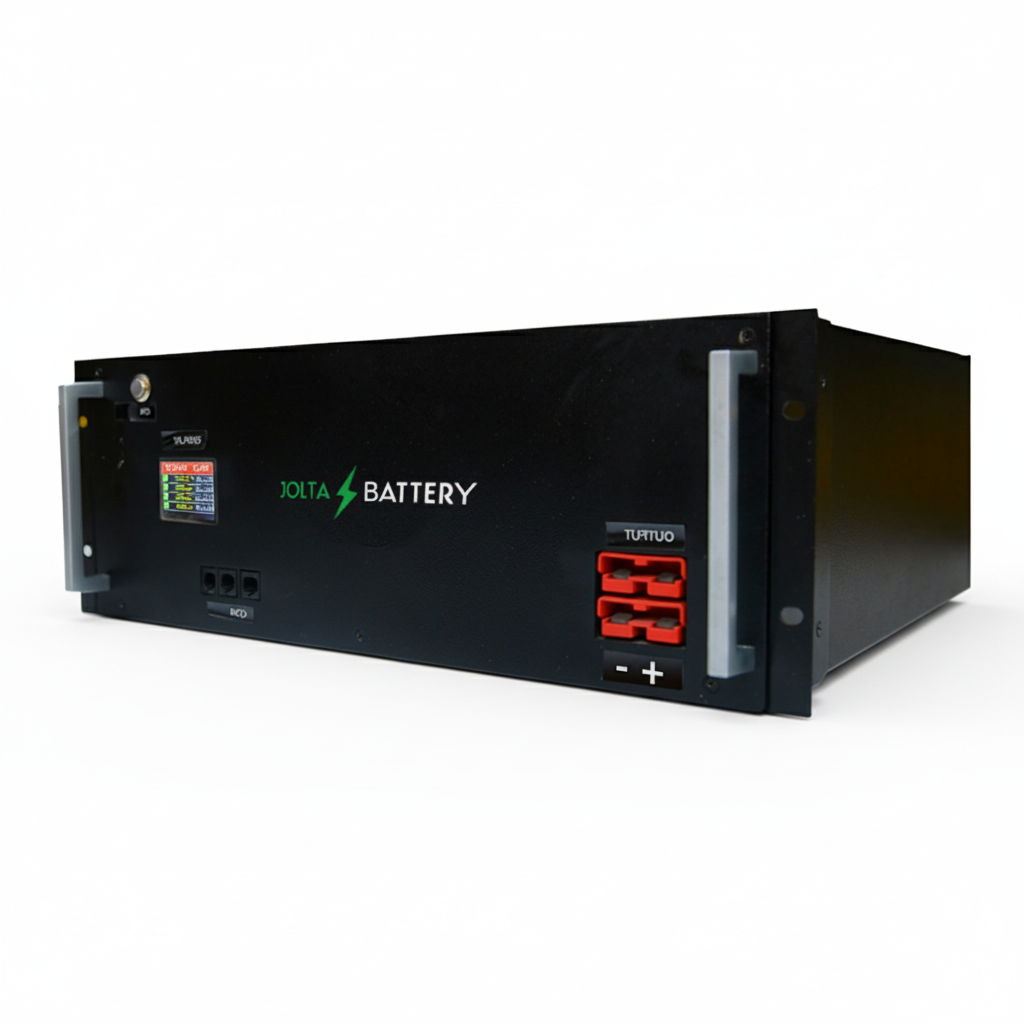

Jolta Nova JB242400N 25.6V 100Ah (2.56kWh) LiFePO4 Lithium Battery – Rack Mount

Jolta Nova JB242400N 25.6V 100Ah (2.56kWh) LiFePO4 Lithium Battery – Rack Mount

SKU: AR-002590
Product Type: Battery
Rs.132,999.00
Rs.149,999.00
Rs.132,999.00
Save Rs.17,000.00
Subtotal: Rs.132,999.00
  • Alladin Store

5 Years Component Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Jolta Nova JB242400N 25.6V 100Ah (2.56kWh) LiFePO4 Lithium Battery – Rack Mount

Jolta Nova JB242400N 25.6V 100Ah (2.56kWh) LiFePO4 Lithium Battery – Rack Mount

Rs.149,999.00 Rs.132,999.00
Jolta Nova JB242400N 25.6V 100Ah (2.56kWh) LiFePO4 Lithium Battery – Rack Mount

Jolta Nova JB242400N 25.6V 100Ah (2.56kWh) LiFePO4 Lithium Battery – Rack Mount

Rs.149,999.00 Rs.132,999.00
Description

Upgrade your power storage with this high-performance 25.6V 100Ah Lithium Iron Phosphate (LiFePO4) Battery, designed for reliability, long life, and consistent energy output. Ideal for solar systems, backup power, RVs, marine, and industrial applications.

Key Features:

  • High Capacity & Energy: 100Ah capacity with a total energy of 2.56kWh.
  • Efficient Performance: Continuous charge & discharge up to 100A.
  • Long Lifespan: Projected calendar life of 10+ years with 80% recommended discharge depth.
  • Versatile Use: Supports parallel connection (series option available).
  • Safe & Reliable: Low self-discharge (2–3%/month) and stable operation from -10°C to 60°C.

Download Datasheet

Category Specification
Performance
Voltage (Nominal) 25.6 V
Maximum Charge Voltage 28.8 V
Discharge Cut-Off Voltage 20.8 V (Configurable)
Total Energy 2560 Wh
Total Current 100A
Continuous Discharge Current 100A
Continuous Charge Rate 50A Recommended (Supports up to 100A)
Cut-Off Current 50A
ESR/AC @ 1KHZ < 10 mΩ
Physical Specification
Weight 27 kg (Module), 30 kg (With Pack)
Module Casing Material MS/Aluminum
Terminal Type Anderson
Dimensions (L × W × H) 510 × 460 × 170 mm
Dimensions (Pack) 560 × 510 × 220 mm
Features
Built-in Alarm Under/Over Voltage, Over Current, Out of Range Temperature
Compatible Inverters Pylontech, Victron Energy, Growatt, Deye, Solis, Maxpower, SolarMax, Inverex (All Inverters)
Service Life
Projected Calendar Life ≥ 10 Years
Shelf Life 5 Years
Safety Performance & Environment
Over/Under Voltage Unit Shutdown
Over Current Unit Shutdown
Over Temperature Unit Shutdown
Cell Operating Temperature -10°C to 60°C
Operating Humidity Non-Condensing
Additional
Parallel Connection Yes
Series Connection Yes
Custom Option Available
Self-Discharge 2-3% per month
Recommended Discharge Depth 80%
