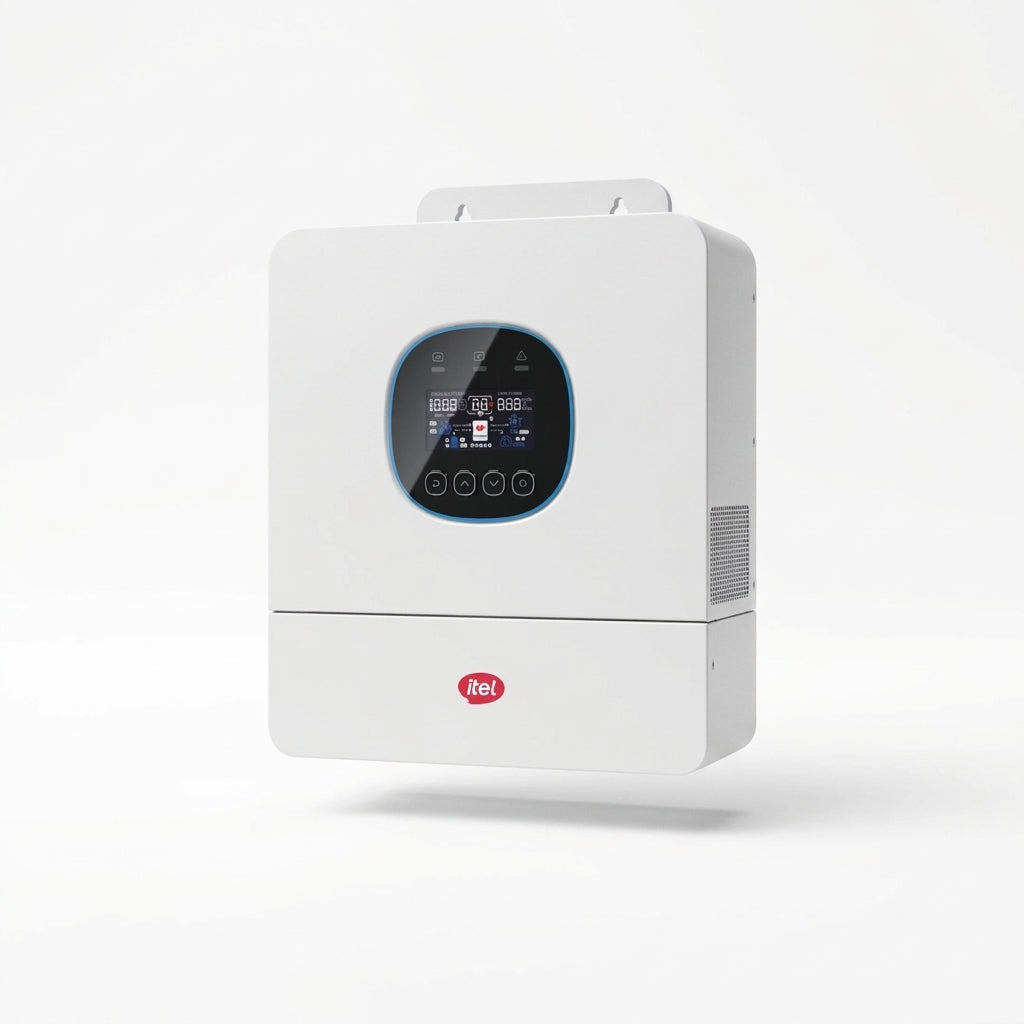

iTel 3kW Pro IP54 Hybrid Solar Inverter

The iTel 3kW Pro IP54 Hybrid Solar Inverter is a reliable and efficient solar power solution designed for small to medium-sized residential applications. With a rated output of 3,000W and a surge capacity of 6,000VA, it provides dependable power for household appliances and supports temporary high-power loads. Featuring 99.9% MPPT efficiency, this hybrid inverter helps maximize solar energy generation. Its 20ms switchover time enables a quick transition to backup power during electricity outages, helping maintain a more reliable power supply for essential appliances. The iTel 3kW Pro supports LiFePO4, lead-acid, and user-defined battery settings, offering flexibility for different battery systems. Its 24V DC battery system, 200% overload capacity, and IP54 protection make it a practical choice for home solar installations where efficient energy conversion and dependable backup power are important.

Key Features

• Rated Output Power: Delivers 3,000W of continuous power for compatible household appliances and residential loads.

• Surge Power: Supports up to 6,000VA for 2 seconds to handle temporary power surges.

• Hybrid Solar Technology: Combines solar energy, battery storage, and AC input in one integrated power solution.

• Battery Voltage: Operates with a 24V DC battery system.

• Battery Compatibility: Supports LiFePO4, lead-acid, and user-defined battery configurations.

• Battery Voltage Range: Supports a battery voltage range of 20V–30V.

• MPPT Efficiency: Achieves at least 99.9% MPPT efficiency for effective solar energy harvesting.

• Battery Conversion Efficiency: Provides 93% battery conversion efficiency.

• Maximum PV Input Voltage: Supports solar panel input voltage up to 500V.

• AC Input Voltage Range: Accepts AC input from 90V to 280VAC.

• AC Output Voltage: Provides selectable nominal output voltages of 220V, 230V, or 240VAC.

• Overload Capacity: Supports up to 200% overload for 15 seconds, according to the specified operating conditions.

• Fast Switchover: Features a 20ms switchover time for a quick transition to backup power.

• Low Harmonic Distortion: Total harmonic distortion is less than 3% under specified conditions.

• IP54 Protection: Offers protection against dust ingress and water splashes, subject to its IP54 rating.

  Specification	Details
  Brand	iTel
  Model	3kW Pro
  Product Type	Hybrid Solar Inverter
  Rated Output Power	3,000W
  Surge Power	6,000VA (2 seconds)
  Battery Voltage	24V DC
  Compatible Batteries	LiFePO4 / Lead-Acid / User Defined
  Battery Voltage Range	20V–30V
  MPPT Efficiency	≥99.9%
  Battery Conversion Efficiency	93%
  Maximum PV Input Voltage	500V
  AC Input Voltage Range	90V–280VAC
  Nominal AC Output Voltage	220 / 230 / 240VAC
  Overload Capacity	200% for 15 seconds
  Switchover Time	20ms
  Total Harmonic Distortion	Less than 3%
  Ingress Protection	IP54
  Weight	9.2 kg
  Dimensions	290 × 108 × 350 mm
