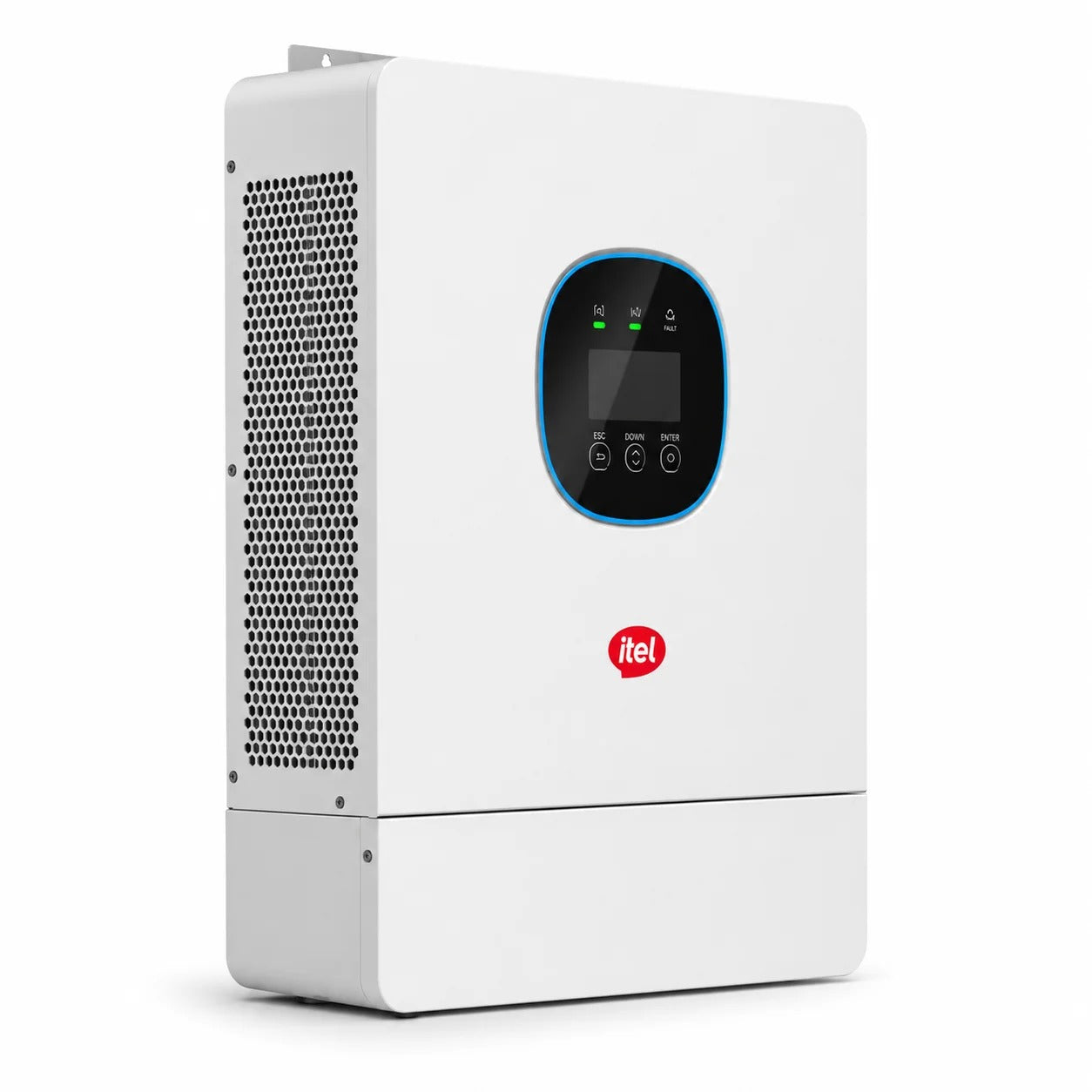

itel 1.6kW IPV-1K612U Hybrid Solar Inverter 12V IP54 | Pure Sine Wave | 3200W PV Input

Featuring pure sine wave output, this hybrid solar inverter delivers clean and stable electricity for compatible appliances. Its 12V battery system supports lead-acid, lithium-ion, and user-defined battery configurations, while the built-in MPPT solar charge controller offers a wide 35–400V MPPT voltage range and up to 140A maximum solar charging current for efficient solar energy utilization. Designed for demanding installation environments, the iTel IPV-1K612U features an IP54 protection rating, a replaceable dust filter, and intelligent fan cooling. Built-in over-temperature protection helps safeguard the inverter during operation, while Wi-Fi, RS485, and RS232 communication options support monitoring and system integration.

Key Features

• 1600W Rated Output: Provides power for compatible household appliances and small backup systems within its rated capacity.

• Pure Sine Wave Output: Delivers clean, stable AC power for compatible electrical equipment.

• 3200W Maximum PV Input: Supports a solar panel array with a maximum specified PV input of 3200W.

• 12V Battery Compatibility: Supports lead-acid, lithium-ion, and user-defined battery configurations.

• 140A Maximum Solar Charging: Provides high-capacity solar battery charging for efficient energy storage.

• Built-In MPPT Controller: Features a 35–400V MPPT voltage range to optimize solar energy harvesting.

• IP54 Protection Rating: Offers protection against dust ingress and water splashes under specified test conditions.

• Over-Temperature Protection: Helps protect the inverter from excessive operating temperatures.

• Replaceable Dust Filter: Supports convenient maintenance in dusty installation environments.

• Intelligent Fan Cooling: Helps manage operating temperature during use.

• Multiple Communication Options: Supports Wi-Fi, RS485, and RS232 for monitoring and system communication.

Technical Specifications
