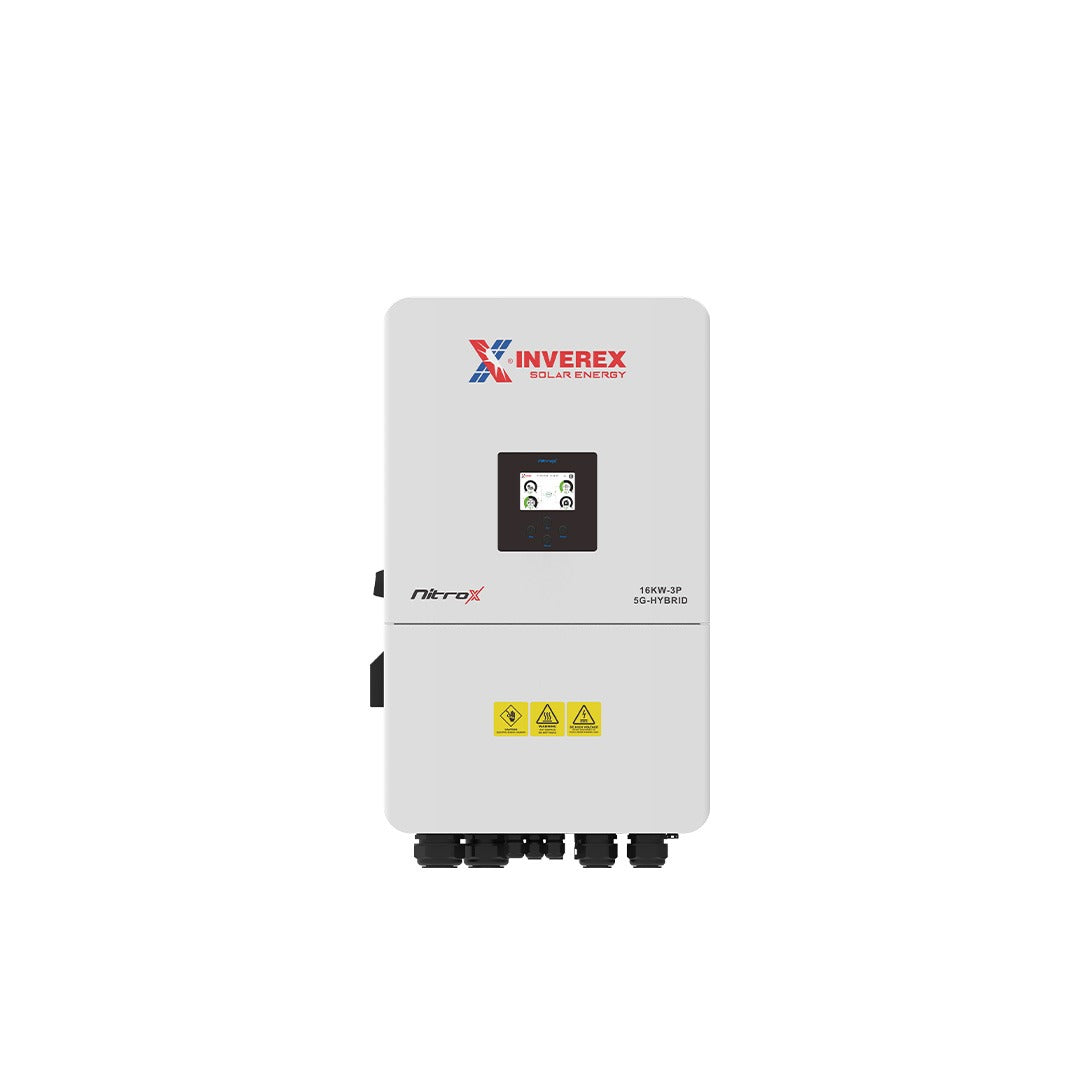

Inverex Nitrox 16 KW - 48 V 5G Hybrid Solar inverter (Three phase)

Key Features

• 25.6KW PV Input Capacity: Wide MPPT range (160–650VDC) with dual 36A+36A input currents for maximum solar capture.
• 300A Charge & Discharge: Ultra-high current support for large battery banks and intensive load demands.
• Dual MPPT with Independent Strings: Two MPPTs (2/2+2) to optimize energy harvest from varied orientations.
• 100% Unbalanced 3-Phase Output: Up to 50% of rated power per phase, ideal for uneven industrial loads.
• Parallel Operation: Supports up to 10 units in on-grid/off-grid configurations for scalable installations.
• AC Coupling Ready: Retrofit existing grid-tied systems to hybrid without changing infrastructure.
• 48V Battery Support: Compatible with lead-acid and Li-ion banks, with dual inputs for redundancy or expansion.
• Color Touch LCD + IP65: User-friendly interface in a dust- and water-resistant enclosure suitable for indoor/outdoor.
• Programmable Battery Scheduling: Six configurable time slots for customized charge/discharge profiles.
• Diesel Generator Integration: Efficiently stores energy from DG backup sources for remote/unstable power areas.
• High Efficiency & Clean Output: 97.6% peak efficiency, >99% MPPT accuracy, <0.5% DC ripple.
• Heavy-Duty Build & Air Cooling: Operates from -40°C to +60°C with intelligent thermal regulation.
• Comprehensive Protections: Surge, polarity, overcurrent, short-circuit, thermal, insulation monitoring, RCD.
• Smart Monitoring & Communication: RS485/RS232/CAN + optional WiFi, Bluetooth, 4G, LAN remote monitoring.
• 5-Year Warranty: Backed by Inverex, compliant with IEC, EMC, OVC global safety standards.
