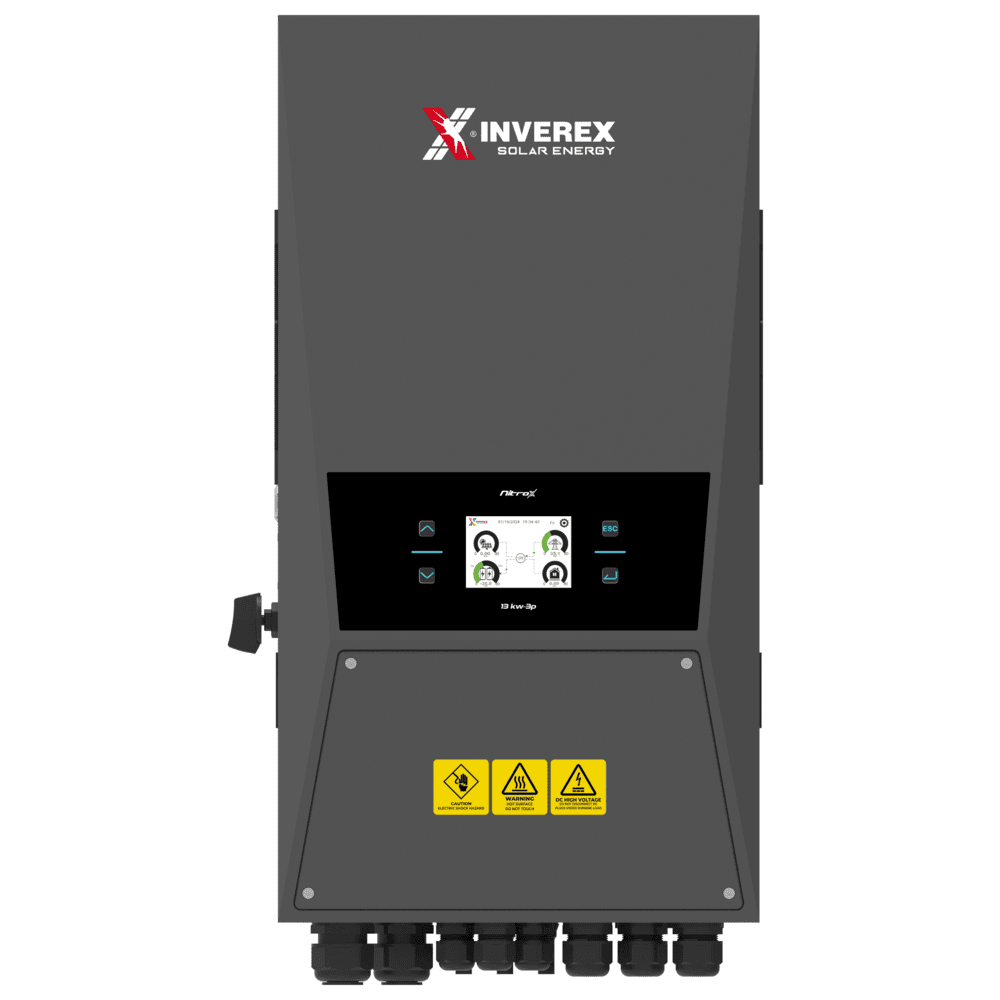

Inverex Nitrox 13 KW - 48 V Hybrid Solar inverter (Three phase)

Experience next-level solar performance with the Inverex Nitrox 13KW – 48V Hybrid Solar Inverter, engineered for powerful, efficient, and intelligent energy management. Designed for both residential and commercial setups, this advanced three-phase hybrid inverter combines massive power handling with cutting-edge smart features for maximum reliability and performance.

Delivering a 13KW power output with up to 20.8KW PV input, the Nitrox 13KW offers exceptional flexibility for large-scale solar systems. Its dual MPPT technology (200–650VDC range) ensures ultra-efficient power conversion, while the 255A max charging/discharging current provides superior battery performance.

The true 3-phase output supports 100% unbalanced load, making it ideal for diverse power demands. Its AC coupling design allows easy integration with existing solar systems—no reinstallation required.

Built for scalability, the parallel connection feature lets you expand your system up to 10 inverters, giving you the power to grow your energy capacity as needed.

With a touch LCD display and IP65 weatherproof design, you get real-time monitoring in any environment. The inverter supports 48V battery banks, features 6-time-slot scheduling for intelligent energy use, and ensures quiet operation (<55dB) through smart thermal management.

Engineered for 97.6% inverter efficiency and >99% MPPT tracking, this system ensures every watt counts—while comprehensive protection (overvoltage, surge, thermal, islanding, and polarity) keeps your investment safe.

Key Features:

• Power Output: 13KW / 48V (Three Phase)

• PV Input: Up to 20.8KW

• Dual MPPT: 200–650VDC Range for Maximum Yield

• Battery Handling: 255A Max Charging/Discharging Current

• True 3-Phase Output: 100% Unbalanced Load Support (Up to 50% per Phase)

• AC Coupling: Ideal for Existing Solar Retrofits

• Parallel Connection: Supports Up to 10 Units in Parallel

• Touch LCD Display: Intuitive Interface for Easy Control

• IP65 Protection: Dust & Water Resistant

• Battery Scheduling: 6 Smart Time Slots for Energy Optimization

• Generator Compatible: Seamless Diesel Backup Support

• Smart Cooling: Quiet Operation Below 55dB

• Efficiency: 97.6% Inverter, >99% MPPT, <0.5% DC Ripple

• All-Round Protection: Overvoltage, Surge, Thermal, Islanding, Reverse Polarity

• Advanced Communication: RS485 / RS232 / CAN + Optional WiFi, Bluetooth, 4G, LAN

• Warranty: 5 Years | Meets IEC, EMC, OVC Certifications

The Inverex Nitrox 13KW Hybrid Solar Inverter is built for those who demand maximum performance, scalability, and durability—making it the perfect choice for high-capacity solar energy systems.
