Description

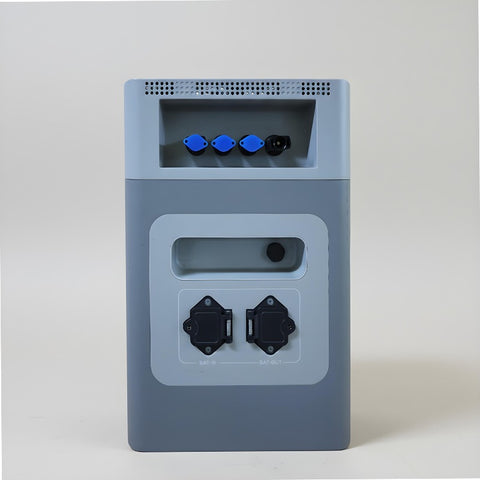

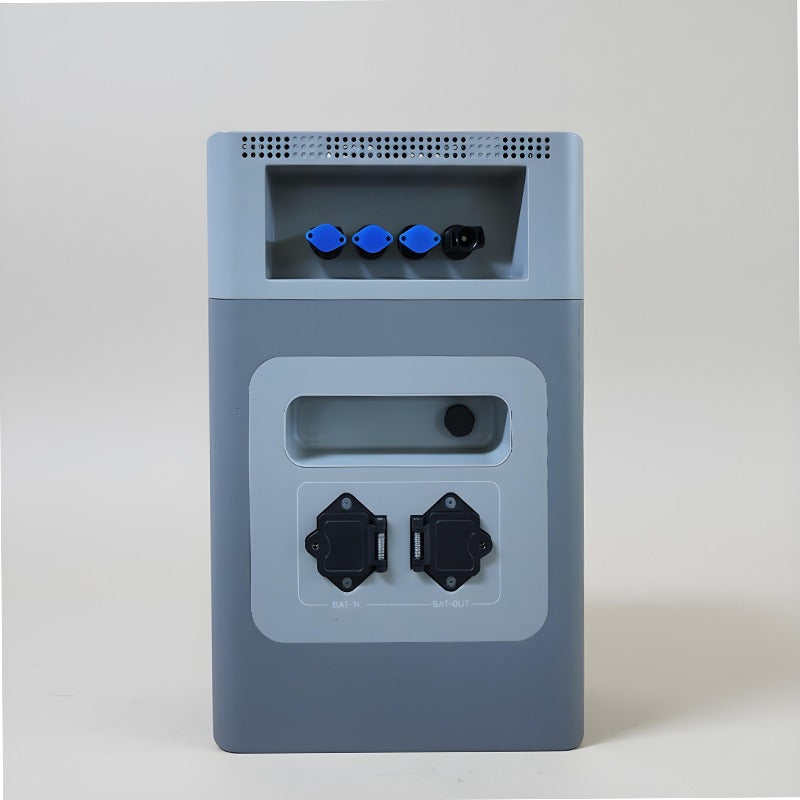

BALCONY 1H2 (1000W Inverter with 2000Wh LiFePO₄ Battery)

The BALCONY 1H2 is an all-in-one energy storage solution, combining a powerful 1000W off-grid pure sine wave inverter with a built-in 2000Wh high-cycle LiFePO₄ battery. It features dual MPPT solar charging, smart connectivity (Wi-Fi, Bluetooth, CAN2.0, and LoRa), and a responsive touch LCD interface. Engineered for residential, balcony solar systems, RVs, and off-grid or backup use, this compact unit delivers clean, reliable energy with smart control and robust safety standards.

Key Features

  • 1000W Pure Sine Wave Inverter – Delivers clean and stable power ideal for sensitive electronics and appliances.

  • Built-in 2000Wh LiFePO₄ Battery – High-performance lithium iron phosphate battery with long cycle life and deep discharge support.

  • Dual MPPT Solar Charger – Two independent MPPT inputs with wide PV voltage range for optimized solar harvesting.

  • Wi-Fi, Bluetooth, CAN2.0 & LoRa Connectivity – Enables advanced remote monitoring and system control.

  • Color Touch LCD Display – User-friendly interface shows system performance, SOC levels, and alarm indicators.

  • Compact & Floor-Mountable Design – Space-saving and portable; ideal for small setups and mobile applications.

  • Smart Energy Management – Seamlessly integrates solar input, grid bypass, and battery storage for efficient usage.

  • Safety & Certification – Built to meet UN38.3, IEC, CE, VDE, and other key international standards.

  • 5-Year Warranty – Long-term reliability and technical support for peace of mind.

Technical Specifications

Inverter Specifications

Specification Details
Inverter Model BALCONY 1H2
Nominal Output Power 1000W
UPS / Continuous Output 1000W
Peak Power (Off-grid) 2000W for 10 seconds
AC Input / Output Voltage 220V–230V AC, 50/60Hz
Rated AC Input / Output Current 4.6A (input) / 4.4A (output)
Max. Grid Input / Output Current 5.0A / 4.8A
Max. Grid to Load Bypass Current 10A
Output Type Single Phase
Power Factor 0.8 leading to 0.8 lagging
THD (DC Injection Current) <3% (Linear Load <1.5%)
Installation Type Floor-mounted
IP Rating IP65

PV (Solar Charger) Specifications

Specification Details
Max. PV Access Power 2200W
Max. PV Input Power 1600W
Number of MPPTs 2
MPPT Input Current 18A + 18A
Max. PV Short Circuit Current 27A + 27A
Rated PV Voltage 42.5V (Operating Range: 20V–55V)
PV Start-up Voltage 25V DC

Battery Specifications

Specification Details
Battery Type Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage 51.2V
Total Energy Capacity 2000Wh
Operating Voltage Range 44.8V – 57.6V
Charge / Discharge Current 40A
Battery Cycle Life ≥6000 cycles @25°C, 0.5C, 70% EOL
Parallel Capability Up to 5 units
Weight 20 kg
Battery Display LED (SOC, Alarm) / Optional LCD
Battery Communication Interfaces CAN2.0, LoRa, Wi-Fi, Bluetooth

General & Environmental Specifications

Specification Details
Display Touch LCD + App + LED Indicators
Dimensions (W × D × H) 450 × 210 × 244 mm
Total Weight 26 kg (including inverter + battery)
Operating Temperature Range -10°C to 50°C
Max. Operating Altitude 3000 meters
Relative Humidity 15% – 85% (Non-condensing)
Certifications UN38.3, CE, IEC 62619, VDE, G98, NBR
Warranty 5 Years
