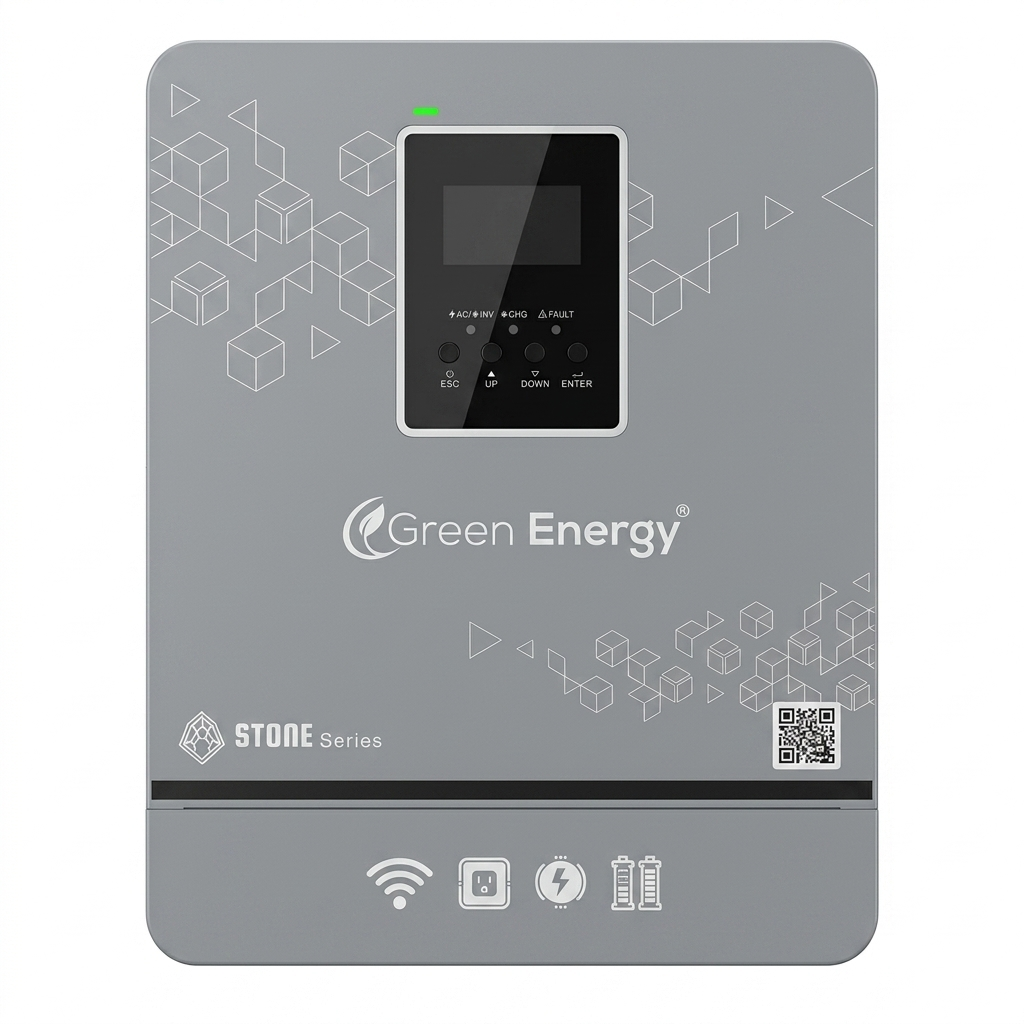

Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS

Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS

SKU: AR-003187
Product Type: solar inverter
Rs.66,999.00
Rs.69,999.00
Rs.66,999.00
Save Rs.3,000.00
Subtotal: Rs.66,999.00

1 year parts warranty + 4 years service warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS

Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS

Rs.69,999.00 Rs.66,999.00
Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS

Green Energy Stone Series 3.6kW PV5200 Off-Grid Solar Inverter | Pure Sine Wave UPS

Rs.69,999.00 Rs.66,999.00
Description

The Green Energy Stone Series 3.6kW PV5200 is a reliable off-grid solar inverter designed for homes, offices, and backup power systems in Pakistan. Built with pure sine wave technology, it delivers stable and efficient performance for sensitive electronics, appliances, fans, lights, and solar systems. Perfect for home backup systems and solar energy setups, the Green Energy Stone Series combines durability, efficiency, and intelligent power management in one compact solution.

Key Features

  • 3.6kW Off-Grid Solar Inverter
    Reliable backup power solution for homes and small offices.
  • Pure Sine Wave Output
    Safe and stable power for sensitive electronics and appliances.
  • High Efficiency up to 94%
    Maximizes solar energy utilization and reduces power loss.
  • Hybrid Functionality
    Supports solar panels, batteries, and utility grid simultaneously.
  • Smart LCD Display
    Displays voltage, battery status, load status, and system information.
  • Multiple Working Modes
    Includes Solar Priority and UPS mode for flexible operation.
  • WiFi & Mobile Monitoring Support
    Monitor inverter performance remotely on supported models.
Parameter / Feature STONE 3024PV5200 (3.6KW)
INPUT
Rated Input Voltage 220 / 230 / 240VAC
Voltage Range (APL Mode) 90-280VAC ±3V
Voltage Range (UPS Mode) 170-280VAC ±3V
Frequency Range 50Hz / 60Hz (Auto Adaptive)
OUTPUT
Battery Inverter Capacity 3600W
Photovoltaic Inverter Capacity 3600W
Peak Power 7200VA
Output Voltage 220 / 230 / 240VAC ± 5%
Output Frequency 50 / 60Hz ± 0.1%
Waveform Pure Sine Wave
Power Factor 1
Switching Time (Computer / UPS Mode) 10ms
Switching Time (Appliance / APL Mode) 20ms
Overload Capacity (Battery Mode) 11s @ 105%-150% Load;

2s @ 150%-200% Load;

400ms @ >200% Load
BATTERY
Rated Voltage 24Vdc
Constant Voltage Charging Voltage 28.2Vdc (Configurable)
Float Charging Voltage 27Vdc (Configurable)
PV CHARGER
PV Charging Method MPPT
Maximum Input Power of PV 5200W
MPPT Input Voltage Range 30-500Vdc
Optimal Vmp Operating Range 300-400Vdc
Maximum PV Input Voltage 500Vdc
Maximum PV Input Current 13A
Maximum PV Charging Current 100A
Maximum Mains Charging Current 60A
Maximum Total Charging Current 100A
DISPLAY & INTERFACE
LCD Interface Displays Running Mode, Loads, Input/Output, etc.
RS232 Baud Rate: 2400
Expansion Slot Communication Interface Lithium Battery BMS Card, Wifi Card, Dry Contact
Parallel Interface No Parallel Connection
ENVIRONMENTAL PARAMETERS
Operating Ambient Temperature -10°C to +50°C
Operating Environment Humidity 20%-95% (No condensation)
Storage Temperature -15°C to +60°C
Noise <45dB
PHYSICAL PARAMETERS
Dimensions (Depth x Width x Height) $482 \times 371 \times 176\text{ mm}$
Standards and Certifications EN-IEC60335-1, EN-IEC60335-2-29, IEC62109-1
Read More
