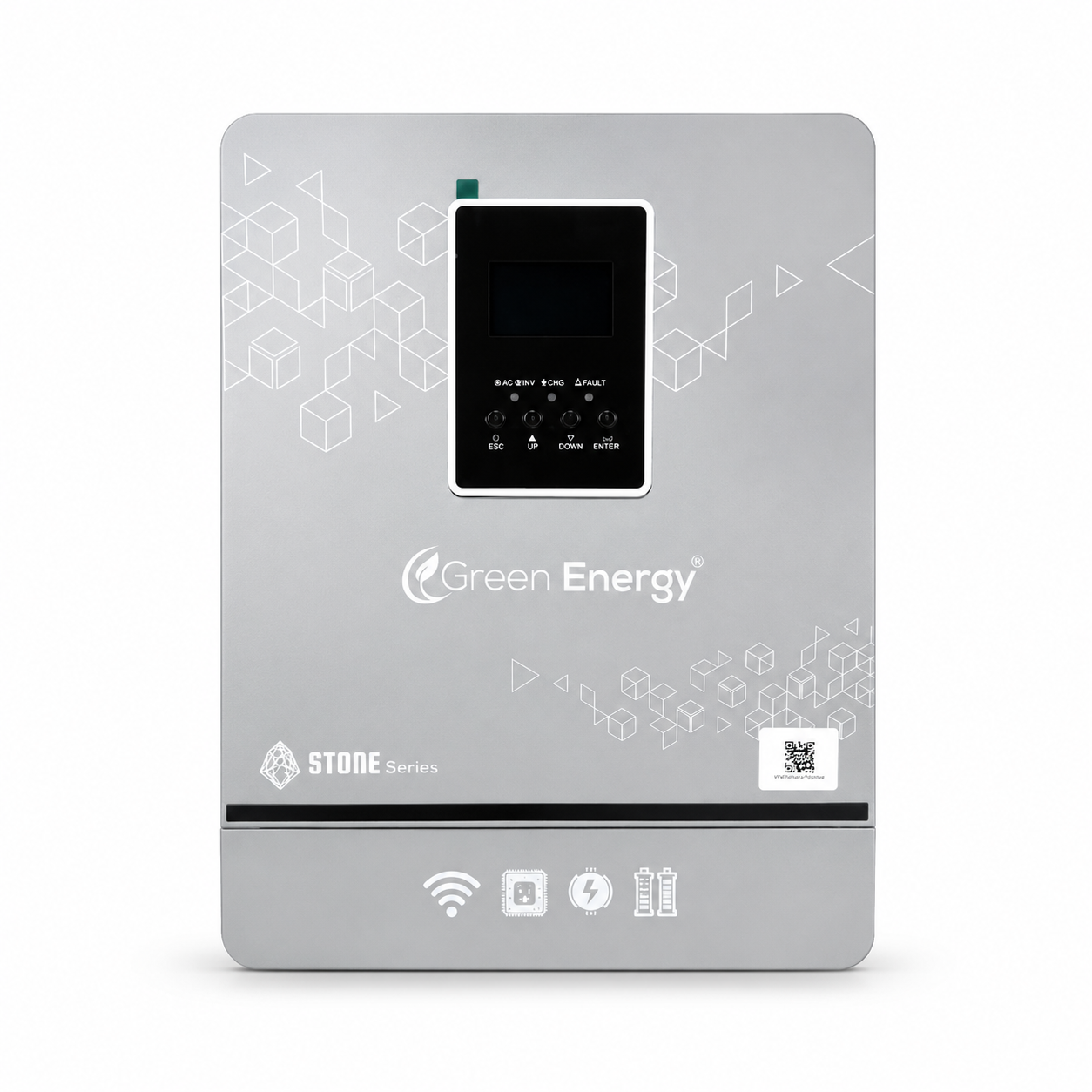

Green Energy Stone Series 2KW PV3200 Hybrid Solar Inverter IP21 | Pure Sine Wave Off-Grid UPS

Green Energy Stone Series 2KW PV3200 Hybrid Solar Inverter IP21 | Pure Sine Wave Off-Grid UPS

SKU: AR-003186
Product Type: hybrid solar inverter
Rs.58,000.00
Rs.60,000.00
Rs.58,000.00
Save Rs.2,000.00
Subtotal: Rs.58,000.00

1 year parts warranty + 4 years service warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Green Energy Stone Series 2KW PV3200 Hybrid Solar Inverter IP21 | Pure Sine Wave Off-Grid UPS

Green Energy Stone Series 2KW PV3200 Hybrid Solar Inverter IP21 | Pure Sine Wave Off-Grid UPS

Rs.60,000.00 Rs.58,000.00
Green Energy Stone Series 2KW PV3200 Hybrid Solar Inverter IP21 | Pure Sine Wave Off-Grid UPS

Green Energy Stone Series 2KW PV3200 Hybrid Solar Inverter IP21 | Pure Sine Wave Off-Grid UPS

Rs.60,000.00 Rs.58,000.00
Description

The Green Energy Stone Series 2KW PV3200 Solar Inverter IP21 is a reliable and energy-efficient hybrid inverter designed for homes, offices, and small solar backup systems. Built with advanced pure sine wave technology, it delivers stable power output for sensitive electronics, appliances, and daily backup needs during load-shedding. With hybrid functionality supporting solar panels, batteries, and grid power, this inverter ensures uninterrupted performance and optimized energy usage. Its intelligent LCD display and smart operating modes make it an ideal solution for modern solar energy systems in Pakistan.

Key Features

  • 2000W Rated Power Output
  • Pure Sine Wave Technology for smooth and stable performance
  • Supports Solar + Battery + Grid hybrid operation
  • High efficiency up to 94%
  • Ideal for homes, shops, and small offices
  • Smart LCD display for system monitoring
  • Multiple working modes including Solar Priority and UPS Mode
  • Remote ON/OFF support
  • Compatible with sensitive electronics and appliances
  • Designed for Pakistan’s load-shedding conditions
Parameter / Feature STONE 2012PV3200 (2KW)
INPUT
Rated Input Voltage 220 / 230 / 240VAC
Voltage Range (APL Mode) 90-280VAC ±3V
Voltage Range (UPS Mode) 170-280VAC ±3V
Frequency Range 50Hz / 60Hz (Auto Adaptive)
OUTPUT
Battery Inverter Capacity 2000W
Photovoltaic Inverter Capacity 2000W
Peak Power 4000VA
Output Voltage 220 / 230 / 240VAC ± 5%
Output Frequency 50 / 60Hz ± 0.1%
Waveform Pure Sine Wave
Power Factor 1
Switching Time (Computer / UPS Mode) 10ms
Switching Time (Appliance / APL Mode) 20ms
Overload Capacity (Battery Mode) 11s @ 105%-150% Load;

2s @ 150%-200% Load;

400ms @ >200% Load
BATTERY
Rated Voltage 12Vdc
Constant Voltage Charging Voltage 14.1Vdc (Configurable)
Float Charging Voltage 13.5Vdc (Configurable)
PV CHARGER
PV Charging Method MPPT
Maximum Input Power of PV 3200W
MPPT Input Voltage Range 30-500Vdc
Optimal Vmp Operating Range 300-400Vdc
Maximum PV Input Voltage 500Vdc
Maximum PV Input Current 13A
Maximum PV Charging Current 100A
Maximum Mains Charging Current 60A
Maximum Total Charging Current 100A
DISPLAY & INTERFACE
LCD Interface Displays Running Mode, Loads, Input/Output, etc.
RS232 Baud Rate: 2400
Expansion Slot Communication Interface Lithium Battery BMS Card, Wifi Card, Dry Contact
Parallel Interface No Parallel Connection
ENVIRONMENTAL PARAMETERS
Operating Ambient Temperature -10°C to +50°C
Operating Environment Humidity 20%-95% (No condensation)
Storage Temperature -15°C to +60°C
Noise <45dB
PHYSICAL PARAMETERS
Dimensions (Depth x Width x Height) $482 \times 371 \times 176\text{ mm}$
Standards and Certifications EN-IEC60335-1, EN-IEC60335-2-29, IEC62109-1
