Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output
Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output
Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output

Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output

SKU: AR-002588
Product Type: solar inverter
Rs.284,999.00
Rs.325,999.00
Rs.284,999.00
Save Rs.41,000.00
Subtotal: Rs.284,999.00
  • Alladin Store

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output

Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output

Rs.325,999.00 Rs.284,999.00
Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output
Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output
Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output

Green Energy REX 11.0KW Hybrid Solar Inverter – PV15000 | Built-in WiFi, Lithium Battery Port, Dual Output

Rs.325,999.00 Rs.284,999.00
Description

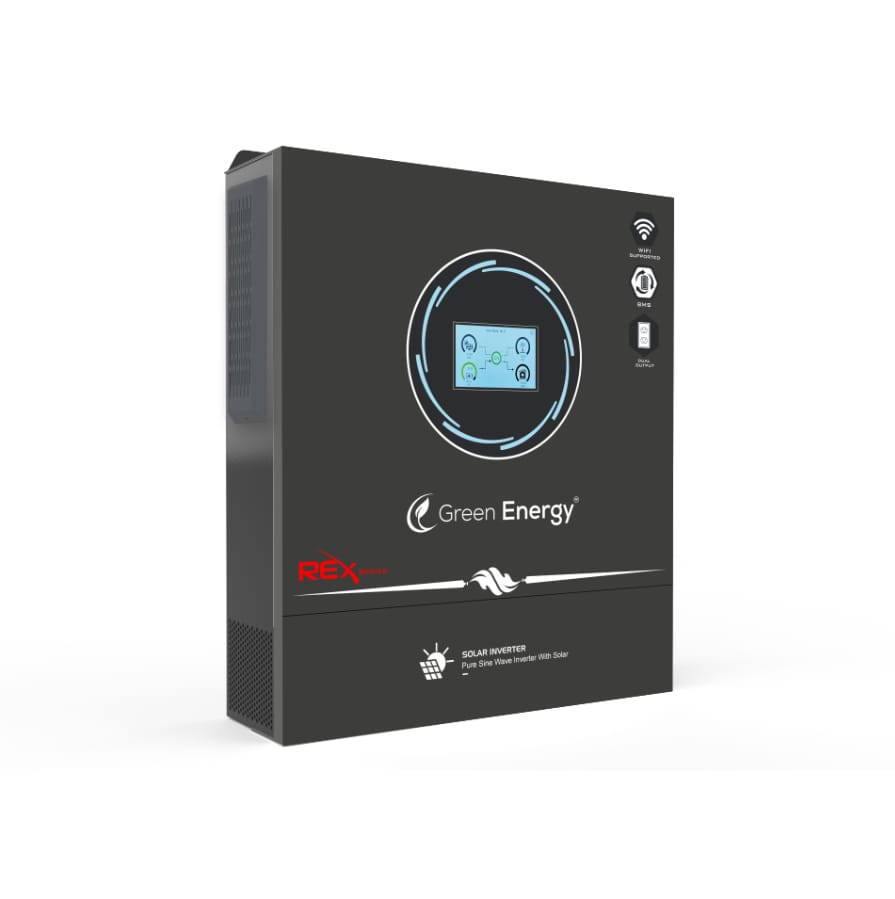

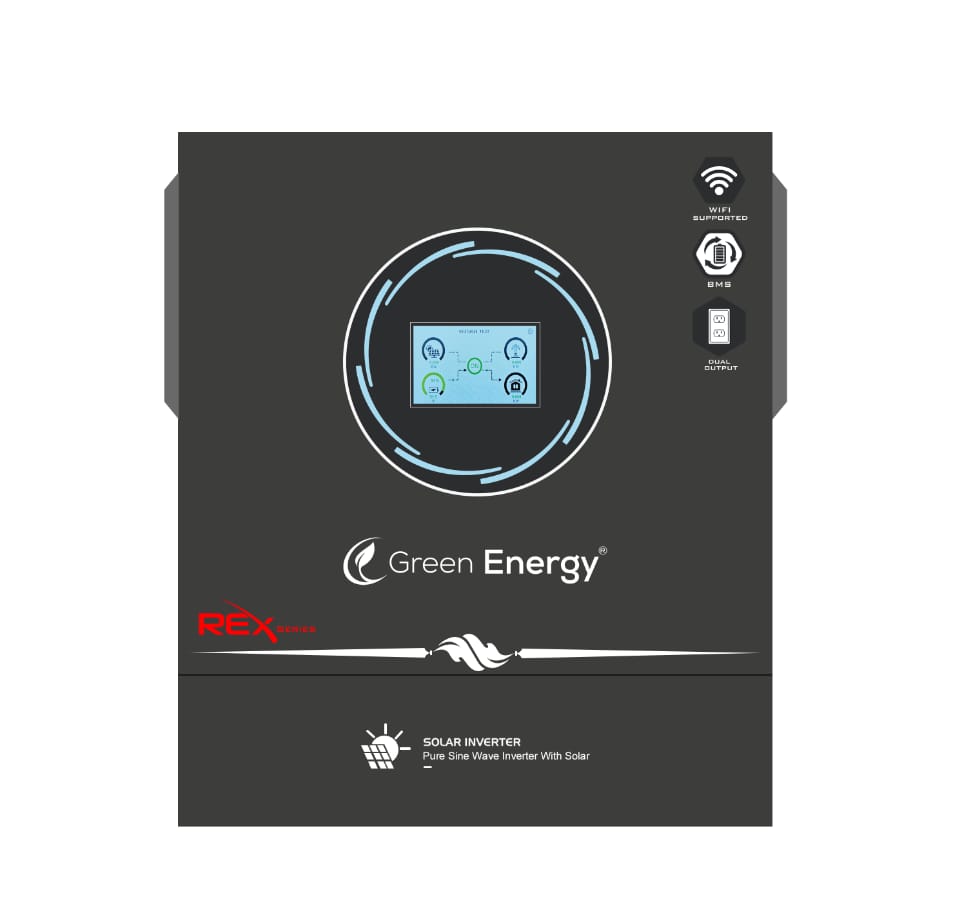

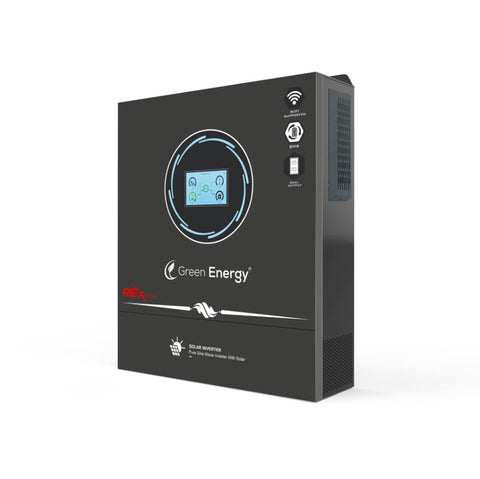

Upgrade your solar system with the REX 11.0KW Hybrid Solar Inverter, designed for efficiency, durability, and modern style. With a touch color screen display and RGB atmosphere lighting, it combines advanced technology with a sleek frosted grey design.

Key Features:

  • Touch Screen + RGB Lighting – Intuitive color touch display with modern RGB indicators for quick system status.
  • Enhanced PV Mode Output – Delivers stronger inverter power performance under solar (PV) operation.
  • Built-in WiFi Monitoring – Easy remote access and system tracking anytime.
  • Lithium Battery Port – Compatible with lithium batteries for reliable storage solutions.
  • Dual Output Function – Separate output options for essential and non-essential loads.
  • Modern Appearance – Frosted grey finish with a stylish, durable build.

Download DataSheet

MODEL REX11048PV15000
Rated input voltage 220/230/240VAC
Voltage range 90-280VAC±3V (normal mode) 170-280VAC±3V (UPS mode)
Frequency range 50Hz/60Hz(Adaptive)
OUTPUT
Battery 11000W
Photovoltaic 11000W
Peak Power 22000VA
Output voltage 220/230/240VAC±5%
Output frequency 50/60Hz±0.1%
Waveform pure Sine Wave
Switching time (adjustable) Computer equipment 10ms, home appliances 20ms
Overload capacity Battery Mode : 11s@105%~150% Load;2s@150%~200% Load; 400ms@>200% Load
GRID-CONNECTED OPERATION
Output voltage 220/230/240VAC
grid feeding voltage range 195-253VA
grid feeding frequency range 49-51±1Hz/59-61±1Hz
nominal output current 47.8A
power factor range >0.99
maximum conversion efficiency (DC/AC) 0.98
BATTERY
Rated voltage 48Vdc
constant voltage charging voltage (configurable) 56.4Vdc
float charging voltage (configurable) 54Vdc
PV CHARGER
PV charging method Dual MPPT
Maximum input power of PV 2/7500W
MPPT input voltage range 90-500Vdc
optimal Vmp operating range 300~400Vdc
maximum PV input voltage 500Vdc
maximum PV input current 27A/27A
maximum PV charging current 150A
maximum mains charging current 150A
maximum charging current 150A
DISPLAY
LCD Interface Can display operation mode/load/input/output
INTERFACE
RS232 Baud rate 2400
Expansion slot communication interface Lithium battery BMS communication card, WIFI card, dry contact car d, etc.
Parallel interface No parallel function
ENVIRONMENTAL PARAMETERS
Operating ambient temperature  -10°C~+50°C
Operating environment humidity 20%~95%(No condensation)
Storage temperature  -15°C~+60°C
noise <50db
PHYSICAL PARAMETERS
Depth x width x height (mm) 570*500*148mm
Standards and certifications EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
