GoodWe Lynx A G4 Series 16.1kWh Low Voltage Battery 51.2V 314Ah LFP | 10,000 Cycles | IP65

GoodWe Lynx A G4 Series 16.1kWh Low Voltage Battery 51.2V 314Ah LFP | 10,000 Cycles | IP65

Write A Review
SKU: AR-003626
Product Type: low voltage battery
Rs.720,000.00
Rs.745,000.00
Rs.720,000.00
Save Rs.25,000.00
Subtotal: Rs.720,000.00

5 Year Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

GoodWe Lynx A G4 Series 16.1kWh Low Voltage Battery 51.2V 314Ah LFP | 10,000 Cycles | IP65

GoodWe Lynx A G4 Series 16.1kWh Low Voltage Battery 51.2V 314Ah LFP | 10,000 Cycles | IP65

Rs.745,000.00 Rs.720,000.00
GoodWe Lynx A G4 Series 16.1kWh Low Voltage Battery 51.2V 314Ah LFP | 10,000 Cycles | IP65

GoodWe Lynx A G4 Series 16.1kWh Low Voltage Battery 51.2V 314Ah LFP | 10,000 Cycles | IP65

Rs.745,000.00 Rs.720,000.00
Description

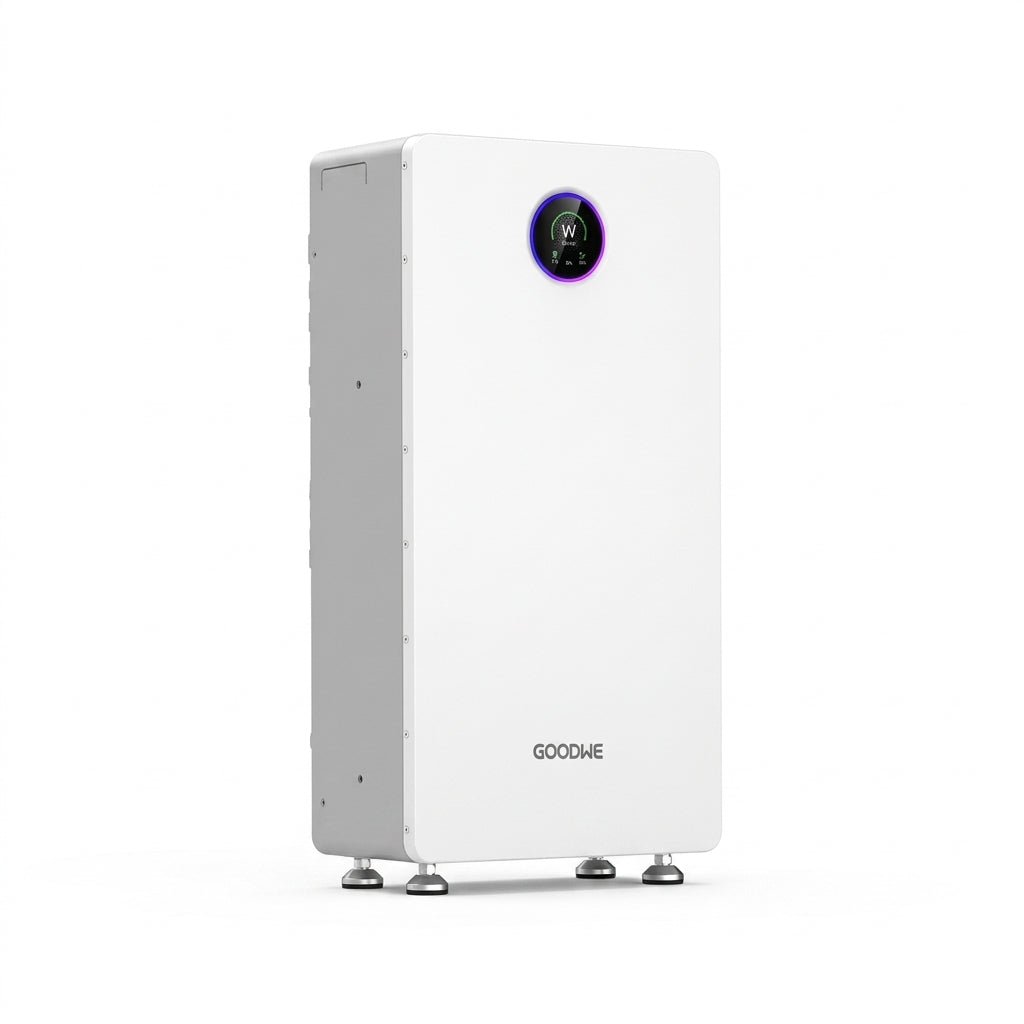

The GoodWe Lynx A G4 Series GW16.1-BAT-LV-G10 16.1kWh Low Voltage Battery is a high-performance LiFePO4 (LFP) energy storage battery designed for residential and commercial solar energy storage systems. With a 51.2V nominal voltage, 314Ah capacity and 16.1kWh rated energy, it provides reliable backup power and efficient energy storage for high-load applications. Built with 314Ah LFP cells and a cycle life of ≥10,000 cycles, the battery is engineered for long-term reliability. Its advanced heating technology supports reliable operation across a wide temperature range, while IP65 protection provides enhanced durability against dust and water.

Key Features

16.1kWh Rated Energy: High-capacity energy storage for solar backup and power applications.

51.2V 314Ah LFP Battery: Uses LiFePO4 technology for reliable and long-lasting performance.

≥10,000 Cycle Life: Designed for long-term energy storage reliability.

0.5C Charge / 0.63C Discharge: Supports high-load backup requirements.

Up to 10kW Output Power: Delivers strong continuous power for demanding applications.

16kW Peak Output: Provides peak system output for up to 15 seconds.

Up to 30 Units Parallel: Flexible scalability for larger energy storage systems.

Wide Operating Temperature: Charging from 0°C to +55°C and discharging from -20°C to +55°C.

IP65 Protection: Enhanced protection against dust and water for improved durability.

Advanced Safety Design: Thermal-electric separation and cell-level heat isolation.

Optional Aerosol Fire Suppression: Additional active fire protection capability.

Built-in Breaker: Simplifies installation with fewer external components.

Integrated Current Limiting: Supports fast expansion and automatic parallel recovery.

Dual-Terminal Daisy Chain: Flexible connection without requiring a busbar.

Wall or Floor Mounted: Multiple installation options for different system configurations.

Optional Wheels: Easier movement, installation and maintenance.

CAN Communication: Reliable communication with compatible energy storage systems.

Technical Data GW16.1-BAT-LV-G10
Battery Type LFP (LiFePO4)
Rated Capacity 314 Ah
Rated Energy 16.1 kWh
Usable Energy*1 ≥14.9 kWh
Nominal Voltage 51.2 V
Voltage Range 45.92 ~ 57.76 V
Max. Continuous Charging Current (System) 157 A
Max. Continuous Discharging Current (System) 200 A
Max. Input Power*2 8 kW
Max. Output Power*2 10 kW
Peak Output Power (System)*2 16 kW (15s)
Charging Temperature Range 0 ~ +55°C
Discharging Temperature Range -20 ~ +55°C
Relative Humidity 5 ~ 95%
Max. Operating Altitude 4000 m
Communication CAN
Weight ≤122 kg
Usable Extinguishing Agent CO2, H2O
Crucial Material LiFePO4, C, Cu, LiPF6, Al, (C3H6)n
Ingress Protection IP65
Protective Class I
Dimensions (W × H × D) ≤470 × 895 × 245 mm (No base)
Function Configuration Regulating Wheel (Optional); Aerosol Fire Extinguishing (Optional)
Max. Storage Time (-20 ~ +35°C) ≤12 months
Max. Storage Time (+35 ~ +45°C) ≤6 months
Scalability 30P
Mounting Method Wall-Mounted, Floor-Mounted
Cycle Life*3 ≥10,000 cycles
Safety Standards & Certification IEC62619, IEC60730, IEC63056, CE
EMC CE
Transportation UN38.3, MSDS
