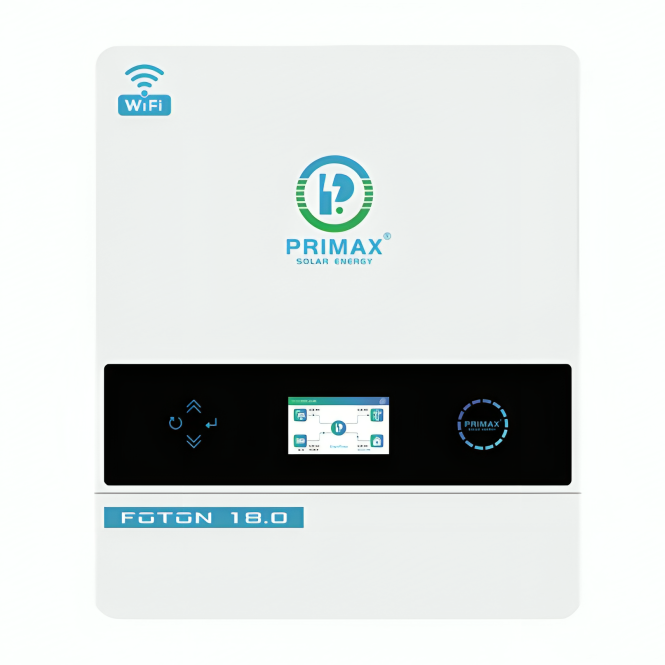

PRIMAX FOTON 18.0 12kw Hybrid Solar Inverter 48V | Dual MPPT

PRIMAX FOTON 18.0 12kw Hybrid Solar Inverter 48V | Dual MPPT

Write A Review
SKU: AR-003377
Product Type: Hybrid Solar Inverter
Rs.280,000.00
Rs.295,000.00
Rs.280,000.00
Save Rs.15,000.00
Subtotal: Rs.280,000.00

2 year parts + 3 year service warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 18.0 12kw Hybrid Solar Inverter 48V | Dual MPPT

PRIMAX FOTON 18.0 12kw Hybrid Solar Inverter 48V | Dual MPPT

Rs.295,000.00 Rs.280,000.00
PRIMAX FOTON 18.0 12kw Hybrid Solar Inverter 48V | Dual MPPT

PRIMAX FOTON 18.0 12kw Hybrid Solar Inverter 48V | Dual MPPT

Rs.295,000.00 Rs.280,000.00
Description

The PRIMAX FOTON 18.0 Hybrid Solar Inverter is a powerful 12kW single-phase hybrid inverter designed for residential, commercial, and industrial solar energy systems. Featuring Dual MPPT technology, support for up to 18,000W PV input, and a 48V battery system, it maximizes solar energy harvesting while delivering reliable backup power. With pure sine wave output, 98% peak DC/AC efficiency, and intelligent battery charging, the FOTON 18.0 ensures stable performance for sensitive electronics and heavy household or business loads.

Key Features

12,000W Hybrid Solar Inverter

Supports Up to 18,000W Solar PV Input

Dual MPPT Solar Charge Controller

48V Battery System Compatibility

Pure Sine Wave Output

Peak DC/AC Efficiency up to 98%

Maximum PV Charging Current: 150A

Maximum AC Charging Current: 150A

Dual Output for Main & Secondary Loads

Wide MPPT Voltage Range (90–500VDC)

Fast UPS Transfer Time (10ms)

RS232 Communication for WiFi Monitoring & Firmware Updates

Ideal for Homes, Offices & Commercial Solar Installations

Parameter FOTON 18.0 Specification
Model FOTON 18.0
Phase Single Phase
Nominal Voltage 220/230/240VAC
Voltage Range 90–280VAC ±3V (Normal Mode), 170–280VAC ±3V (UPS Mode)
Frequency Range 50Hz/60Hz (Adaptive)
Rated Power 12000W
PV Mode / AC Mode 12000W
Battery Mode Output 11000W
Output Voltage (AC) 220/230/240VAC ±5%
Output Frequency 50/60Hz ±0.1%
Dual Output Rated Power Main Load: 11000W, Second Load: 11000W
Waveform Pure Sine Wave
Transfer Time (Adjustable) 10ms (Computer), 20ms (Home Appliances)
Peak Power 22000VA
Overload (Battery Mode) 105%–150% Load: 11s; 150%–200% Load: 2s; >200% Load: 400ms
Peak Efficiency (Battery Mode) >94%
Grid Output Voltage 220/230/240VAC
Feed-in Grid Voltage 175–265VAC
Feed-in Grid Frequency Range 49–51 ±1Hz / 59–61 ±1Hz
Rated Feed-in Grid Current 47.8A
Peak Efficiency (DC/AC) 98%
Battery Rated Voltage 48VDC
Constant Voltage Charging 56.4VDC (Adjustable)
Floating Charge Voltage 54VDC (Adjustable)
PV Charging Method Dual MPPT
Max PV Input Power 18000W (9000W + 9000W)
MPPT Tracking Range 90–500VDC
Best PV Voltage Range 360–430VDC
Max PV Input Voltage 500VDC
Max PV Input Current 32A + 32A
Max PV Charging Current 150A
Max AC Charging Current 150A
Interface RS232 (For External WiFi Device, Monitoring & Firmware Update)
