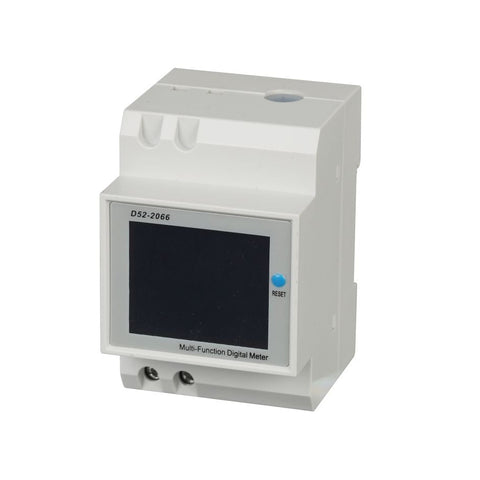

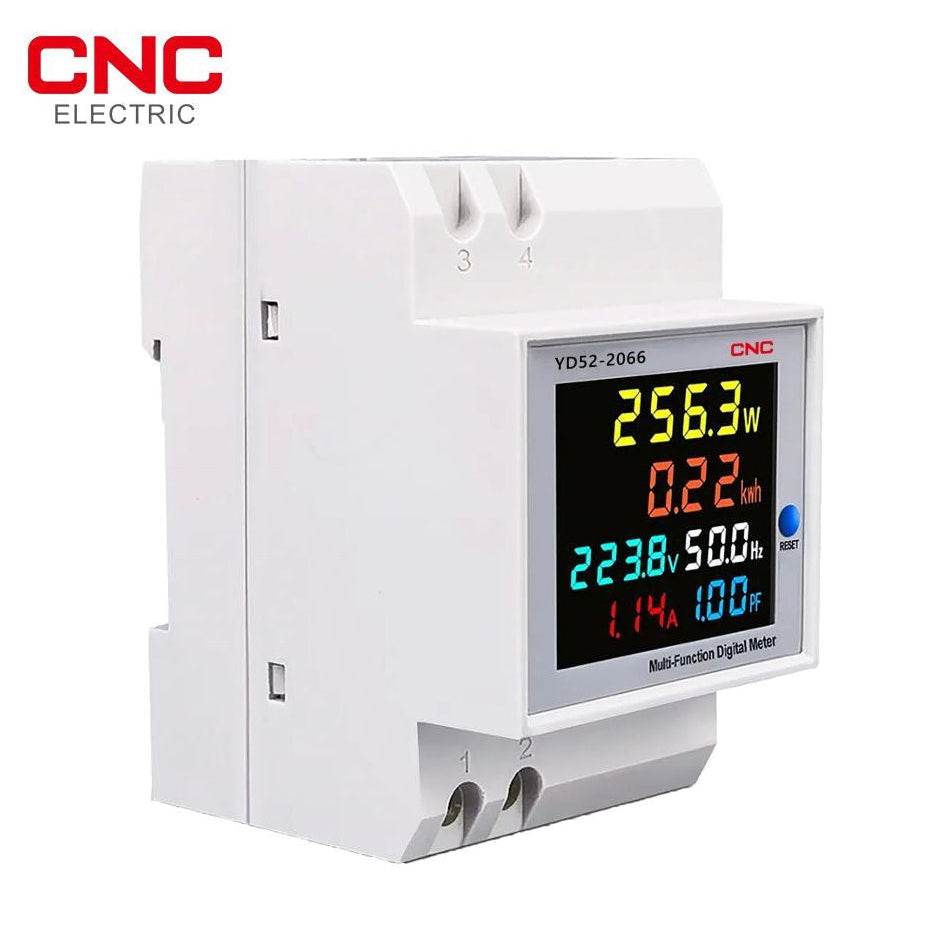

CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter
CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter

CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter

SKU: AR-002923
Product Type: digital meter
Rs.2,900.00
Rs.2,900.00
Rs.2,900.00
Save Rs.0.00
Subtotal: Rs.2,900.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter

CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter

Rs.2,900.00
CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter
CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter

CNC YD-52 2066 Multifunction Digital Power Meter – AC Current, Energy, Power Factor & Frequency DIN-Rail Meter

Rs.2,900.00
Description

With a wide current measuring range up to 100A and high accuracy of 1%, this digital meter ensures dependable performance for power distribution, automation, and control applications. The fast response speed of 2 readings per second enables real-time data tracking, while the compact DIN-rail installation allows easy integration into standard electrical cabinets.

Key Features

Multifunction Power Monitoring – Measures current, power, energy, frequency, and power factor in one device.

Wide AC Current Range (0–100A) – Suitable for residential, commercial, and industrial electrical systems.

High Measurement Accuracy – Provides reliable readings with 1% ±2 words precision.

Real-Time Fast Response – Updates measurements twice per second for accurate monitoring.

Energy Consumption Tracking – Records electric energy usage up to 99,999 kWh.

Power Factor Measurement – Helps analyze load efficiency and power quality.

Wide Frequency Range – Supports 45Hz to 65Hz for stable operation.

DIN-Rail Mounting Design – Ensures quick, safe, and space-saving installation.

Specification Details
Model YD-52 2066
Current Range AC 0–100.0A (Resolution: 0.01A)
Frequency Range 45.0Hz – 65.0Hz
Power Factor 0.00 – 1.00 PF
Electric Power Up to 45,000 W
Electric Energy 0 – 99,999 kWh
Accuracy 1% ±2 words
Display Update Speed 2 times per second
Installation Type DIN-Rail
