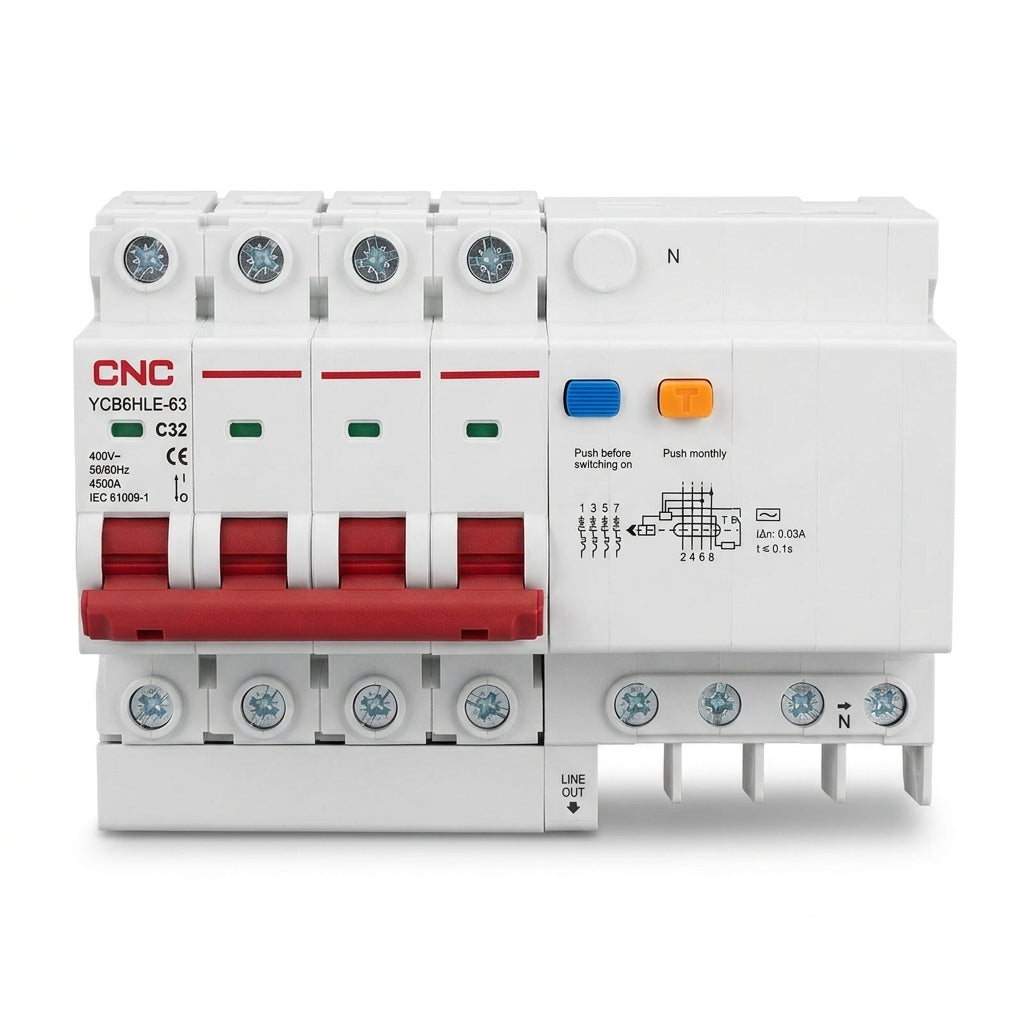

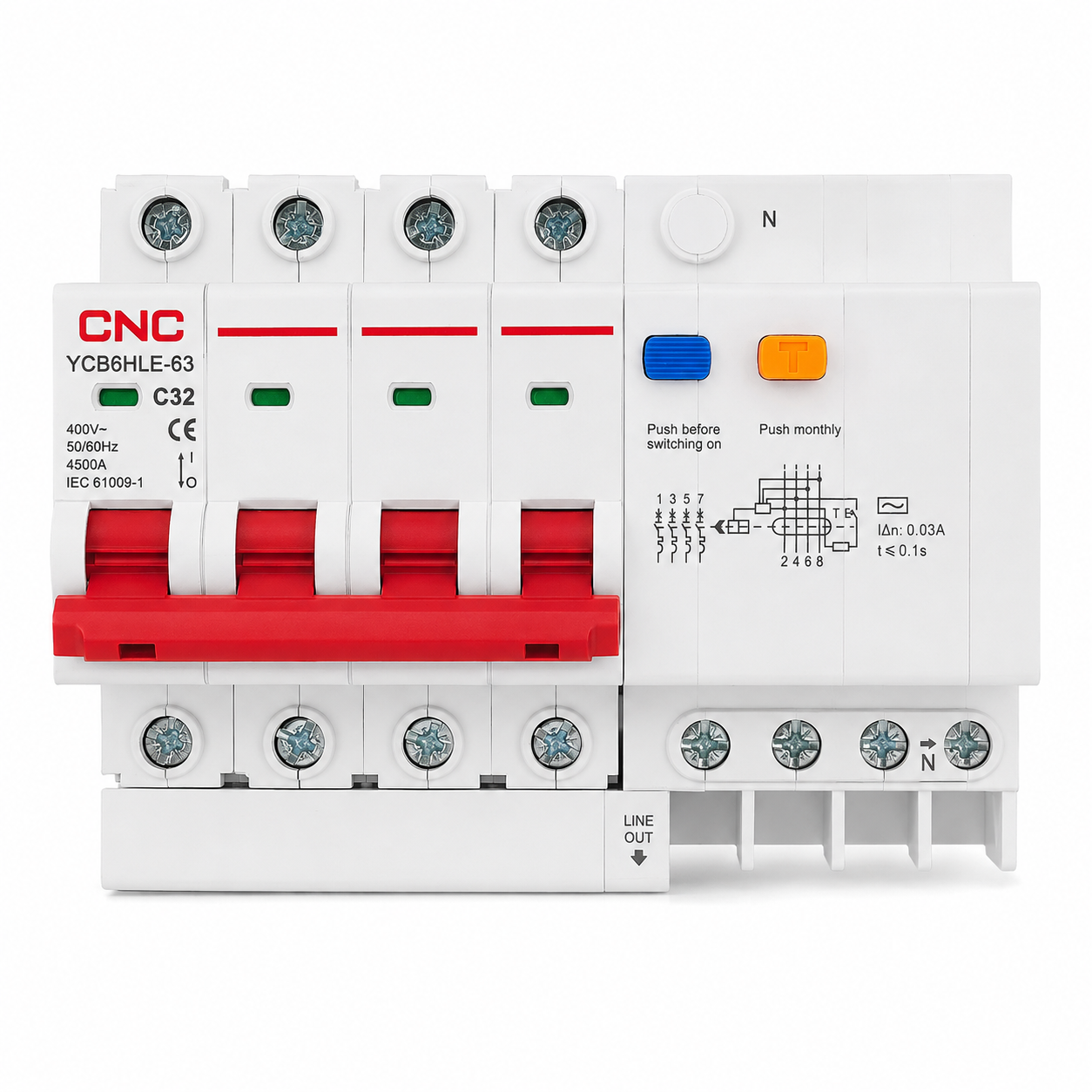

CNC RCBO YCB6HLE-32 3P+N RCCB Circuit Breaker
SKU:
AR-002061
Availability:
In Stock
Product Type:
circuit breaker
- Rs.2,800.00
- Rs.2,800.00
- Unit price
- per
Couldn't load pickup availability
Shipping
You have to pay Partial Payment for order confirmation
Shipped Within 2 - 5 Bussiness Days
CNC RCBO YCB6HLE-32 3P+N RCCB Circuit Breaker
The CNC RCBO YCB6HLE-32 is a high-performance 3P+N MCCB circuit breaker designed for comprehensive electrical system protection. Ideal for residential applications, it offers reliable defense against overloads, short circuits, and earth fault currents. With advanced safety features, it ensures protection against direct and indirect electrical contacts, while minimizing fire risks caused by insulation faults. This circuit breaker is a dependable choice for modern electrical installations.
Key Features
- Overload and Short-Circuit Protection: Safeguards electrical systems by detecting and interrupting excessive current flow.
- Earth Fault Current Protection: Enhances safety by mitigating risks associated with sinusoidal alternating earth fault currents.
- Direct and Indirect Contact Safety: Ensures robust protection against electrical contact hazards.
- Fire Hazard Prevention: Reduces the risk of fire caused by insulation faults in wiring systems.
-
Customizable Instantaneous Release Types:
- Type B: Ideal for highly sensitive circuits (3-5×In).
- Type C: Suited for general-purpose circuits (5-10×In).
- Type D: Designed for heavy inductive loads (10-20×In).
- Residential Applications: Tailored for homes and residential buildings, combining safety and reliability.
Technical Specifications
- Poles: 3P+N
- Rated Current: 32A
-
Trip Curve Types:
- Type B: For protection of highly sensitive circuits (3-5×In).
- Type C: For general purpose circuits (5-10×In).
- Type D: For heavy inductive loads (10-20×In).
- Applications: Suitable for residential buildings and other low-voltage systems.
The CNC RCBO YCB6HLE-32 3P+N MCCB is a reliable solution for ensuring electrical safety in residential installations. Its versatile protection features and customizable trip curves make it ideal for various operational requirements, providing peace of mind and enhanced system durability.
Technical Specifications
| Specification | Details |
|---|---|
| Poles | 3P+N |
| Rated Current (In) | 32A |
| Rated Voltage (Ue) | 400V AC (3P+N) |
| Rated Sensitivity (An) | 0.03A, 0.05A, 0.1A, 0.3A |
| Thermo-Magnetic Release Types | Type B, Type C, Type D |
| Short-Circuit Capacity (Icn) | 4500A |
| Rated Residual Making/Breaking | 500A (In ≤ 40A), 630A (In > 40A) |
| Dielectric Test Voltage | 2kV |
| Rated Frequency | 50/60Hz |
| Impulse Withstand Voltage (Uimp) | 4000V |
| Protection Degree | IP20 |
| Ambient Temperature | -5°C to +40°C |
| Mounting | DIN Rail EN60715 (35mm) with fast clip device |
| Terminal Connection Type | Cable/Pin-type busbar (max 25 mm², AWG 18-3) |
| Tightening Torque | 18 in-lbs |
| Electrical Life | 4000 operations |
| Mechanical Life | 10,000 operations |
