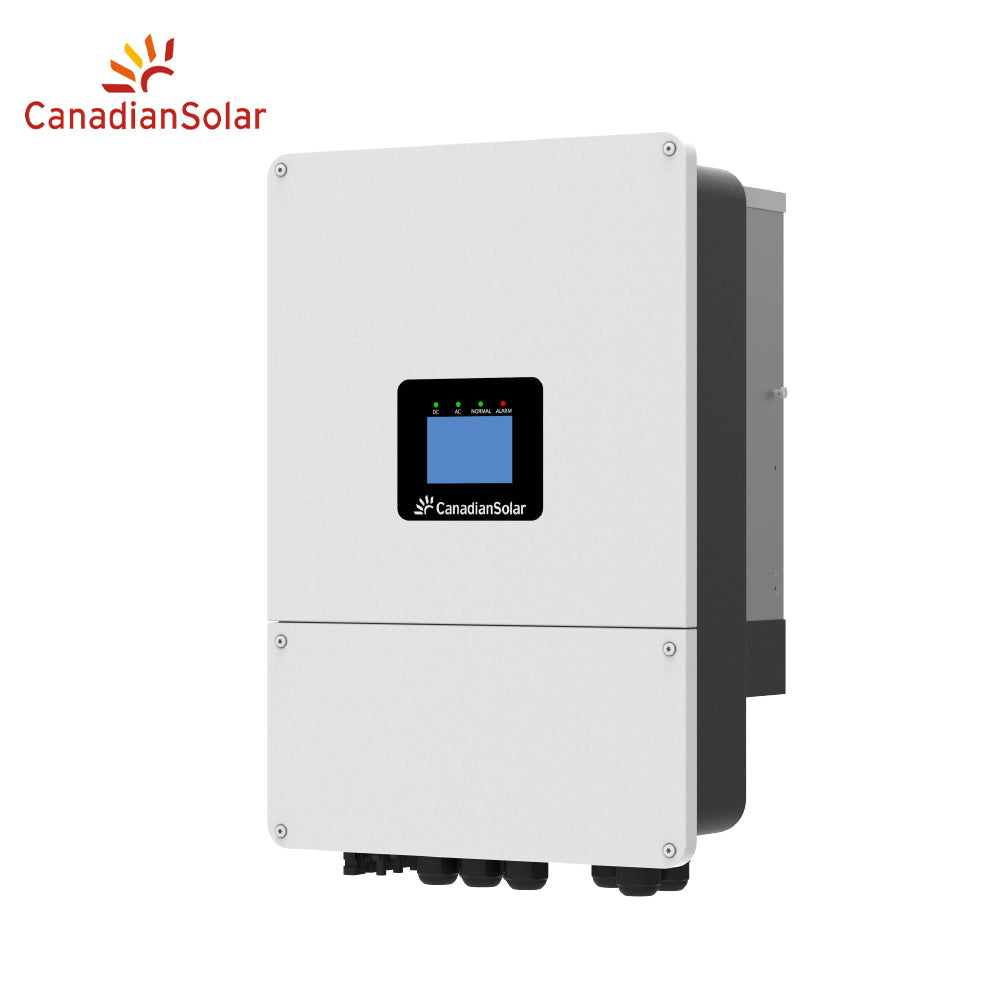

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

SKU: AR-002656
Product Type: solar inverter
Rs.229,999.00
Rs.299,999.00
Rs.229,999.00
Save Rs.70,000.00
Subtotal: Rs.229,999.00

5 Years Brands Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

Rs.299,999.00 Rs.229,999.00
CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

Rs.299,999.00 Rs.229,999.00
Description

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter with PV 9600W

The CanadianSolar CSEH-6K-S2201AL-E is a 6kW single-phase hybrid inverter designed for high performance, reliability, and flexibility in solar energy systems. It supports both lead-acid and lithium-ion (LiFePO₄) batteries, making it ideal for home, commercial, and off-grid power applications.

  • Max. efficiency up to 97.6%
  • Backup with UPS-level switching <4ms
  • 10s of 200% overload capability
  • Support storing energy from diesel generator
  • Compatible with lead-acid and LFP batteries
  • SPD Type II for DC and AC
  • Residual current detection and protection
  • IP66 protection level, strong environmental adaptability
  • Support AFCI function(optional)

Download Datasheet

Model Name CSEH-6K-S2201AL-E
Battery Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40-60 V
Nominal Battery Voltage 48 V
Max. Charging Current 135 A
Max. Discharging Current 135 A
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
Communication CAN/RS485
PV String Input Data
Max. DC Input Power 9600 Wp
Max. DC Input Voltage 550 V
Start-up Voltage 110 V
MPPT Voltage Range 110-450 V
Rated DC Input Voltage 360 V
Max. Operating PV Input Current 20 A /20 A
Max. Input Short-Circuit Current 30 A /30 A
No. of MPP Tracker 2
No. of Strings per MPP Tracker 1/1
Output AC (Grid)
Rated Output Power 6000 W
Max. Apparent Output Power 6600 VA
Rated AC Output Current 27.3 A /26.1 A
Max. AC Output Current 30 A /28.7 A
Rated Output Voltage 220 V /230 V
Grid Connection Type L+N+PE
Rated Output Frequency 50 Hz/60 Hz
Power Factor >0.99,0.8 leading to 0.8 lagging
THDi <3%
DC Injection Current <0.5% In
Output AC (Back-up)
Rated Output Power 6 kW
Max. Apparent Output Power 2 times of rated power, 10 s
Back-up Switch Time <4ms
Rated Output Voltage 220 V /230 V
Rated Frequency 50 Hz / 60 Hz
Rated Output Current 27.3 A /26.1 A
Max. Continuous Output Current 30 A
Max. Continuous AC Passthrough Current 30 A
THDv (@Linear Load) <3%
Input AC (Grid)
Input Voltage Range 187-253 V
Max. Input Current 30 A
Frequency Range 45-55 Hz / 55-65 Hz
Input Generator
Max. Input Power 6000 W
Max. Input Current 27.3 A
Rated Input Voltage 220 V / 230 V
Rated Input Frequency 50 Hz /60 Hz
Efficiency
Max. Efficiency 97.60%
EU Efficiency 96.50%
Protection
Integrated DC Switch, PV Insulation Resistance Detection, Residual Current Monitoring , PV Reverse Polarity Protection,Battery Reverse Polarity Protection , Anti-islanding Protection, AC Overcurrent Protection, AC Short Circuit Protection,AC Overvoltage Protection, Thermal Protection , Overvoltage Load Drop Protection, Earth Fault Detection,Ground Fault Current Monitoring , AFCI(Optional)
Surge Protection Level TYPE II(DC), TYPE II(AC)
General Data
Dimension (WxHxD) 374*554*222 mm
Weight 19.5 kg
Installation Method Wall-mounted
Operating Temperature Range -40 to +60℃ (>45℃ derating)
Operating Ambient Humidity 0-100%(non-condensating)
Operating Altitude 3000m (>2000m derating)
Ingress Protection IP 66
Over Voltage Category OVC II(DC), OVC III(AC)
Type of Cooling Intelligent Fan Cooling
Topology Non-isolated
DC connection D4 (PV) / Terminal Block(Battery)
AC connection Terminal Block
Display LCD
Communication CAN/RS485/WIFI
Compliance IEC 62109-1/2; IEC 61000-6-1/2/3/4; IEC 61727; IEC62116; IEC 61683
