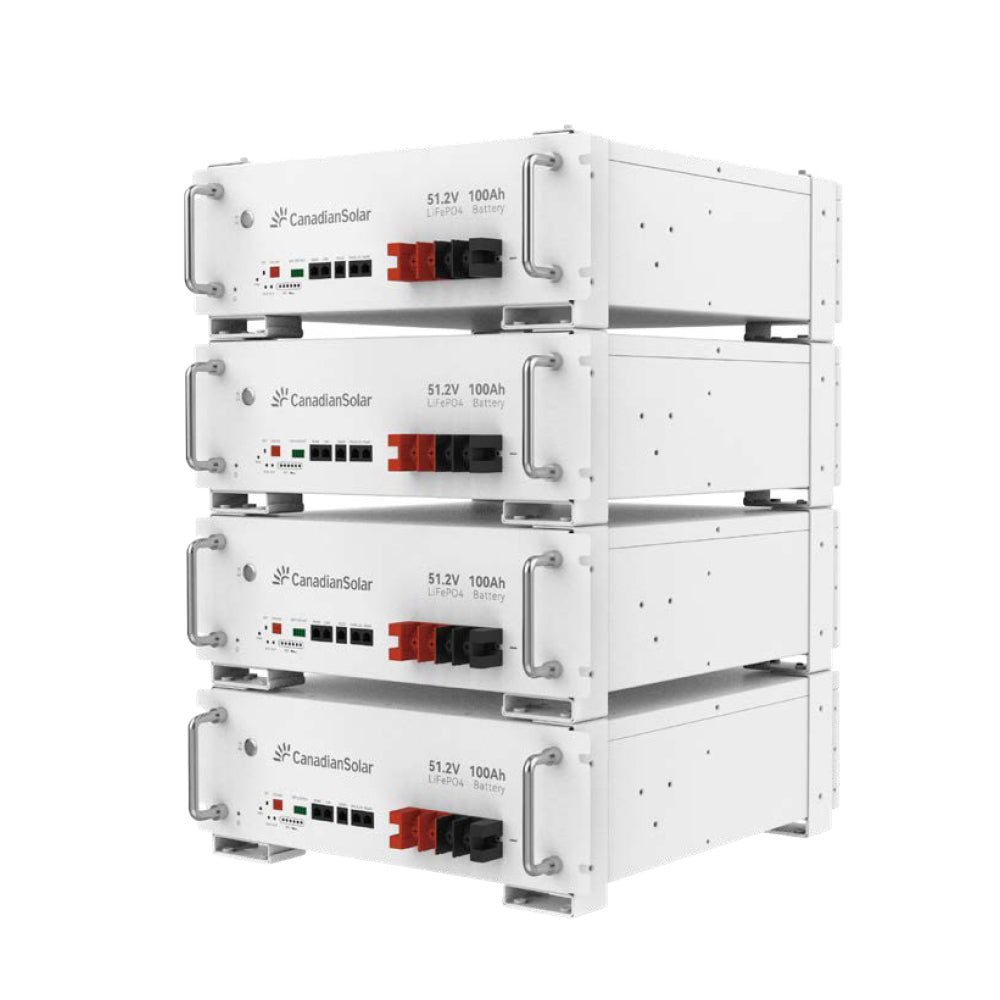

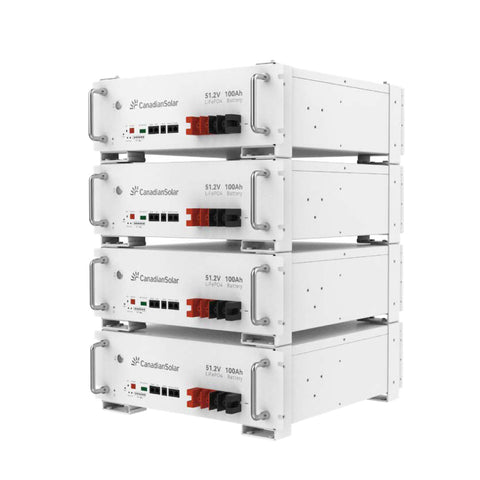

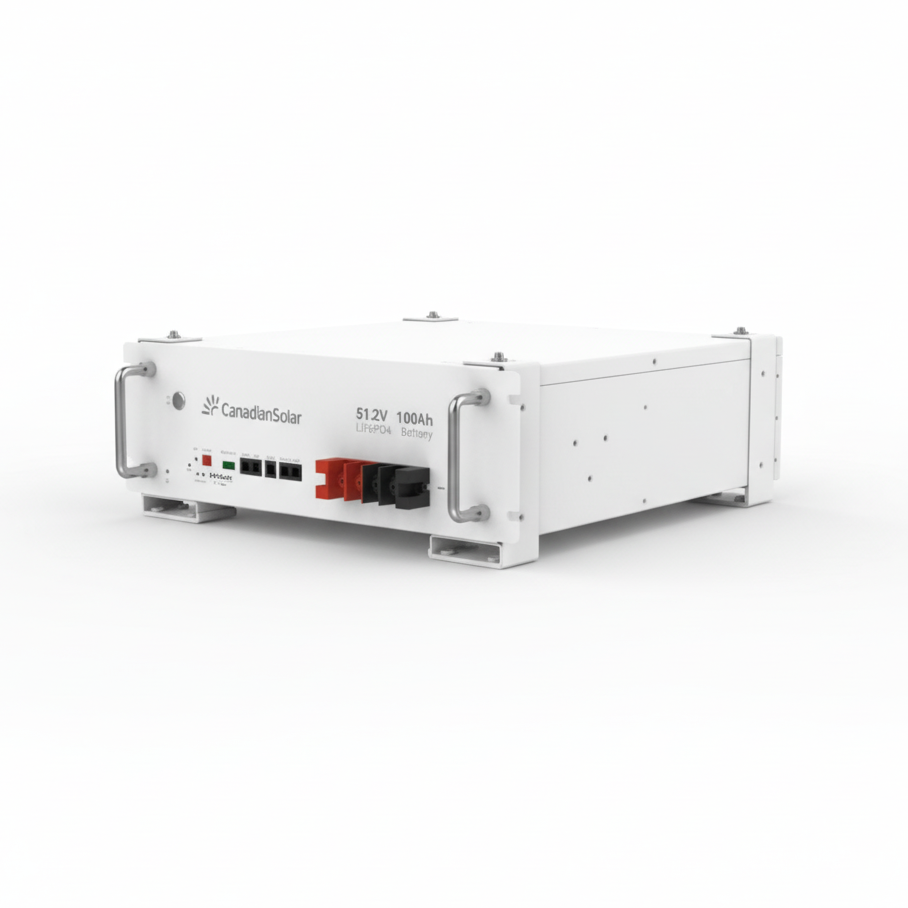

CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20
CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20

CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20

SKU: AR-002705
Product Type: Battery
Rs.230,000.00
Rs.269,999.00
Rs.230,000.00
Save Rs.39,999.00
Subtotal: Rs.230,000.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20

CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20

Rs.269,999.00 Rs.230,000.00
CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20
CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20

CanadianSolar 51.2V 100Ah Lithium Battery 5.12kWh Low Voltage Battery | Built-in Intelligent BMS | CSEB 5L-A1-E Series | 1C Rating | 5kwh | IP20

Rs.269,999.00 Rs.230,000.00
Description

The CSEB 5L-A1-E battery pack supports a 1C discharge rating, delivering stable power for critical loads and high-demand applications. Its modular design allows easy installation and scalability, supporting expansion up to 15 units to meet higher energy storage requirements.Built with durability in mind, this low-voltage battery pack maintains reliable operation even under challenging environmental conditions. It features an IP20 protection rating, wide operating temperature range, and a cycle life exceeding 6000 cycles @25°C, ensuring consistent and efficient power output for years.

Key Features:

  • Built-in Intelligent BMS: Ensures advanced protection and efficient battery management for longer lifespan.
  • Easy Installation & Scalability: Compact design allows quick setup and effortless capacity expansion up to 15 units.
  • High Operational Reliability: Stable performance with consistent power delivery for residential and commercial backup systems.
  • >97% Depth of Discharge (DOD): Maximizes usable energy for extended operation and efficiency.
  • 1C Rating for Critical Loads: Provides strong and stable current output to support high-demand applications.
Feature Value
Model CSEB-5L-A1-E
Product Type Low Voltage Battery Pack
Nominal Voltage (VDC) 51.2
Nominal Capacity (kWh) 5.12
Usable Capacity (kWh) 5
Charge/Discharge Current (A) 100A, 1C
Cycle Life (@25°C) ≥6000
Communication Port CAN
Expansion Up to 15 units
IP Rating IP20
Dimension (W×D×H mm) 460 × 510 × 153
Weight (kg) 47.5
Working Temperature (°C) – Charge 0 ～ 55
Working Temperature (°C) – Discharge -20 ～ 60
Storage Temperature (°C) -10 ～ 35
Humidity (RH) 0% ～ 95%
Altitude (m) ≤4000
