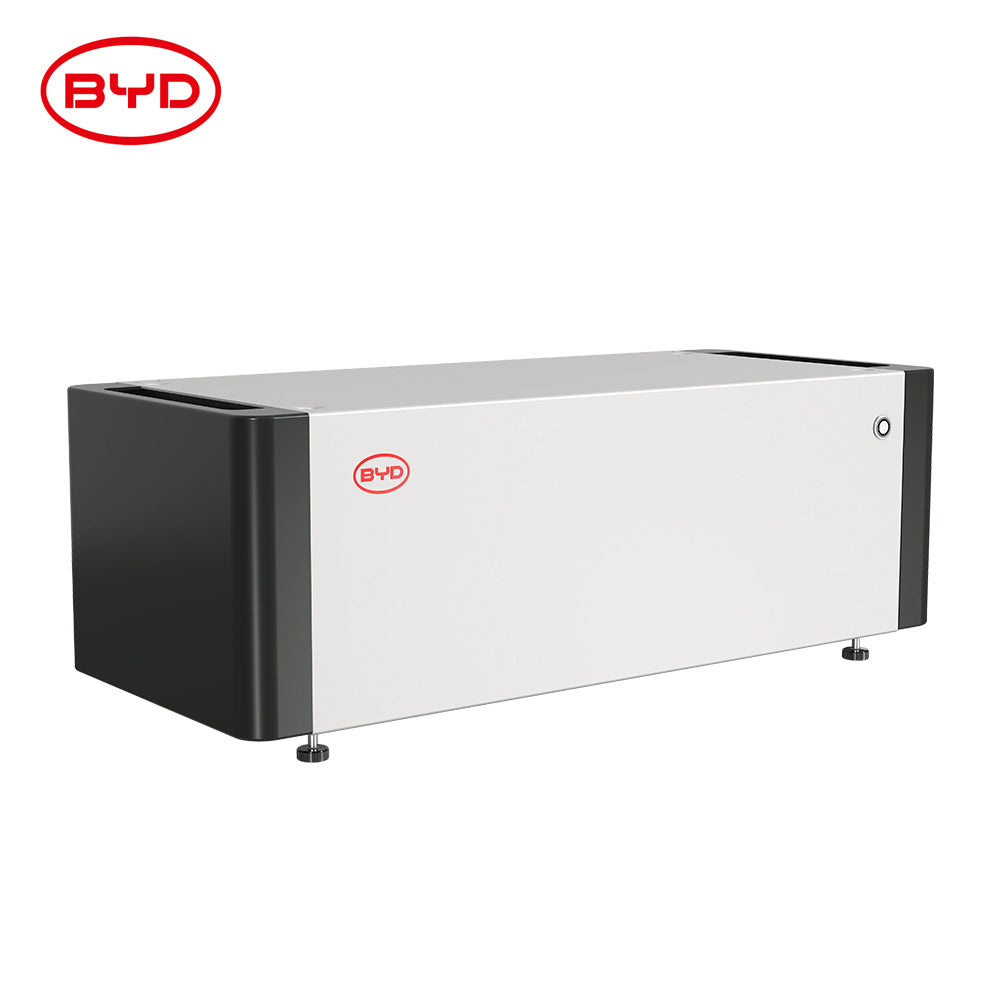

BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution
BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

SKU: AR-002462
Product Type: Battery
Rs.260,000.00
Rs.299,999.00
Rs.260,000.00
Save Rs.39,999.00
Subtotal: Rs.260,000.00

10 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

Rs.299,999.00 Rs.260,000.00
BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution
BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

BYD Battery-Box LV5.0+ 51.2V Plus 100Ah IP20 Lithium Iron Phosphate (LiFePO₄) – 5kWh Floor-Standing Energy Storage Solution

Rs.299,999.00 Rs.260,000.00
Description

The BYD Battery-Box LV5.0+ is a high-performance 5.12kWh lithium iron phosphate (LiFePO₄) energy storage solution designed for residential, commercial, and off-grid solar systems. Engineered with BYD’s in-house LFP battery cells, it delivers exceptional safety, long service life, and stable performance even under demanding operating conditions. With 100% depth of discharge (DOD), 1C charge and discharge capability, and seamless compatibility with major inverter brands, the LV5.0+ provides a reliable, scalable, and future-ready energy storage solution for solar self-consumption, backup power, and energy independence. With 6000 Charging Cycles.

  • Advanced LiFePO₄ Safety Technology – In-house developed LFP cells ensure superior thermal stability, long cycle life, and maximum safety
  • High Performance Output – Supports up to 100A continuous and 200A peak (10s) charge/discharge current with 100% DOD

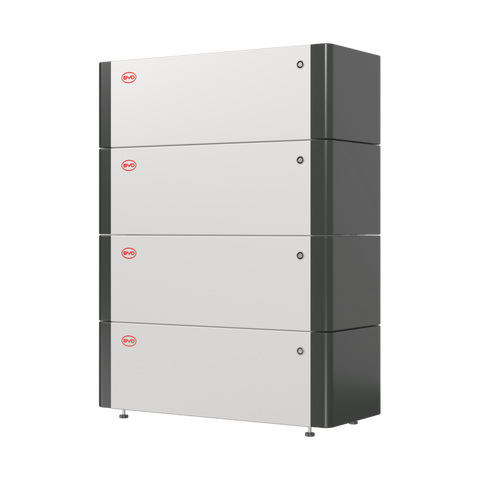

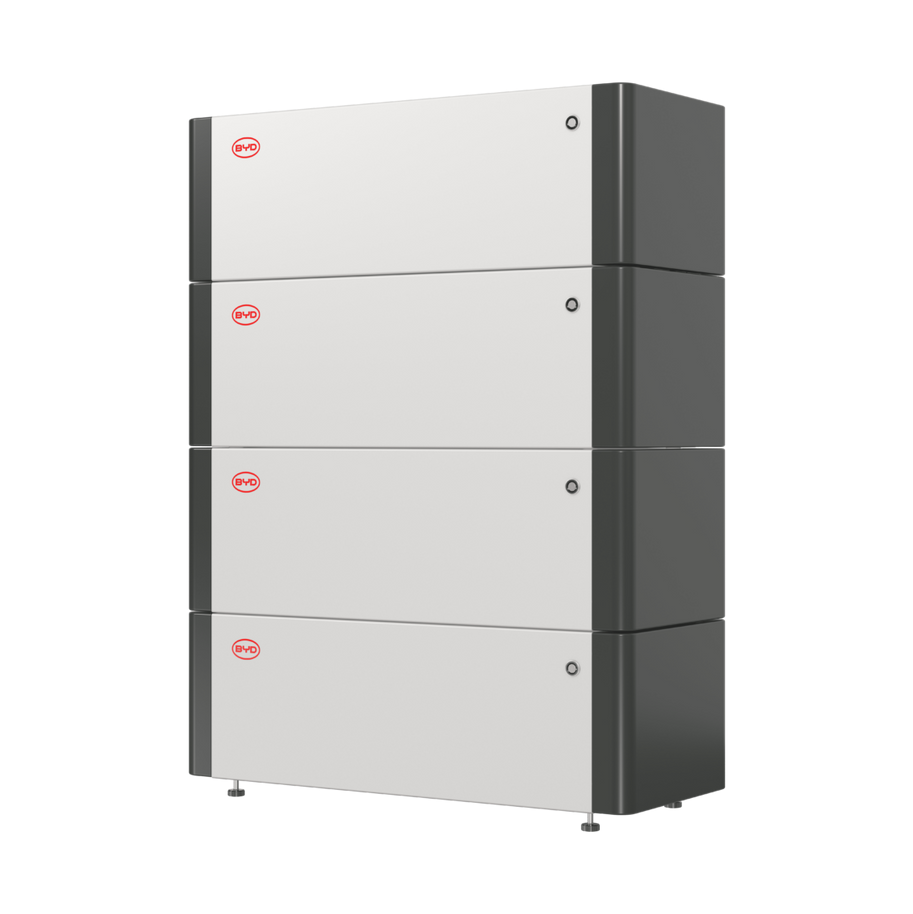

  • Scalable Energy Storage – Expandable up to 32 batteries in parallel, reaching 163.84kWh total capacity
  • Wide Inverter Compatibility – Works with BYD and leading inverter brands including Victron, Deye, Solis, Inverex Nitrox Series, GOODWE, and MA Pilot
  • Smart Monitoring & Control – 24/7 online monitoring, remote diagnostics, OTA updates, and real-time data via BYD Energy App
  • Easy Plug-and-Play Installation – Floor-standing design with fast installation and one-click auto-configuration
  • Long-Term Reliability – Backed by 10-year warranty

Download Datasheet

Parameter Specification
Model BYD Battery-Box LV5.0+
Battery Chemistry Lithium Iron Phosphate (LiFePO₄)
Usable Energy 5.12 kWh
Nominal Voltage 51.2 V
Operating Voltage Range 40 – 58.4 V
Charge Cut-Off Voltage 58.4 V
Discharge Cut-Off Voltage 40 V
Max Charge/Discharge Current 100 A
Peak Charge/Discharge Current 200 A (10 seconds)
Dimensions (H × W × D) 195 × 625 × 285 mm
Weight 45 kg
Installation Mode Floor-standing
Scalability Up to 32 units (163.84 kWh max)
Communication CAN / RS485
Round-Trip Efficiency 2.95%
Operating Temperature (Charge) 0°C to 55°C
Operating Temperature (Discharge) –20°C to 55°C
IP Rating IP20
Humidity Range 5% – 95%
Maximum Altitude < 4000 m
Warranty 10 Years
Certifications CE / IEC 62619 / UN38.3
Applications On-Grid, On-Grid + Backup, Off-Grid
Optional Accessories BYD Smart WiFi / LAN Module
