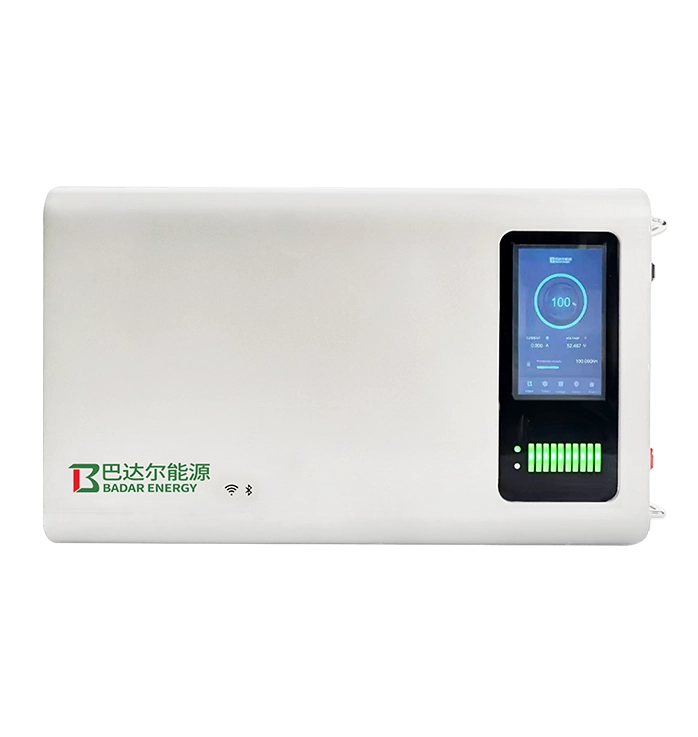

BadarEnergy Tiger Energy Pro 51.2V 100AH-W 5.12 kWh Lithium Battery

The Tiger Pro 5.12 kWh lithium battery (51.2V 100Ah) is engineered for high safety and reliable energy storage using advanced LiFePO₄ technology. With a 6000-cycle lifespan and a fireproof, wall-mounted design, it offers compact efficiency for both home and commercial use. Equipped with a smart BMS supporting CAN and RS485 communication, it ensures stable operation and easy system integration. The built-in Bluetooth (PACE EX) feature enables real-time monitoring through mobile devices. Tiger Pro provides complete protection against voltage, current, temperature, and short-circuit issues, making it a durable and secure choice for modern energy storage.

Features:

• Battery Type: LiFePO₄ (LFP) with 6000 cycles @ 80% DoD.
• Rated Energy: 5.12 kWh (51.2V 100Ah).
• Wall-mounted, compact, and fire-resistant design.
• Smart protection: over/under voltage, current, temperature, discharge, and short-circuit.
• Integrated BMS with CAN and RS485 communication.
• Bluetooth (PACE EX) monitoring via mobile app.
• Operating temperature: -20°C to 55°C (discharge).
• Extensible — connect up to 15 batteries in parallel.


Model No.	51.2V100AH-W
Battery Type	LiFePO₄ / LFP
Configuration	16S1P
Rated Energy	5.12 kWh
Nominal Voltage	51.2 V
Working Voltage	40 V to 58.4 V
Capacity	100 Ah
Recommended Charge Current	≤ 50 A
Max. Charge	100 AH (1C)
Max. Discharge	100 AH (1C)
Cycle Life	>= 6 000 cycles @ 80 % DoD
Extensibility	Up to 15 batteries in parallel
Storage Temperature	–20 °C to +30 °C
Communication	CAN, RS485
Dimensions (L×W×H)	680.5*402.5*142 mm
Wi-Fi	PACE EX
Bluetooth	PACE EX
Weight	42 ± 0.5 kg
Operating Temperature	Discharging: –20 °C ~ 55 °C
Mounting	Wall
