Description
ANENG AN8802
Features:
- Auto/manual intervals.
- True RMS measurement.
- 550V protection across resistance and capacitance ranges.
- Large LCD screen, maximum display 6000 counts.
- Sample rate: 3 times per second.
- Backlight
- Data retention
- Polarity identification
- Low voltage indicator
- 1200A high current measurement, low current measurement
- Auto shut off
- Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity test, temperature, frequency and duty cycle.
Specifications:
- Frequency: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)
- Temperature: <400℃±(1.0%+5%); ≥ 400℃±(1.5%+15); <752 ℉ ±(1.0% + 5), ≥ 752 ℉ ±(1.5% + 15)
- Capacity: 10nF(±5.0 + 20),100nF/1uF/10uF/100uF(±2.0% + 5),1000uF/10000uF(±5.0% +5)
- DC volts: 600mV(±1.0% + 10), 6V/60V/600V/1000V(± 0.5% + 3)
- AC volts: 600mV(±3.0% + 3),6V/60V/600V/750V(±1.0% +3)
- ACA/DCA:600uA/6000uA(±0.8%+10),60A/600A/1200A(±2%+30)
- Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
- Duty cycle: 1% to 99%(±1%)
- Measurement mode: double integral style A/D conversion
- Overrange indication: OL
- Working environment: 0 ~ 40 ℃, relative humidity <80%
- Power supply: 9V battery (not included)
- Frequency: 1Hz to 10MHz
- Temperature: -20℃ to 1000℃(-4℉ to 1832℉)
- Capacity: 10pF to 6000uF
- AC volts: 0.1mV to 750V
- DC volts: 0.1mV to 1000V
- AC current: 0.1uA to 1200A
- DC current: 0.1uA to 1200A
- Resistance: 0.1Ω to 60MΩ
- Duty cycle: 1% to 99%
- Size: approx. 238*90*45mm/9.37*3.54*1.77''

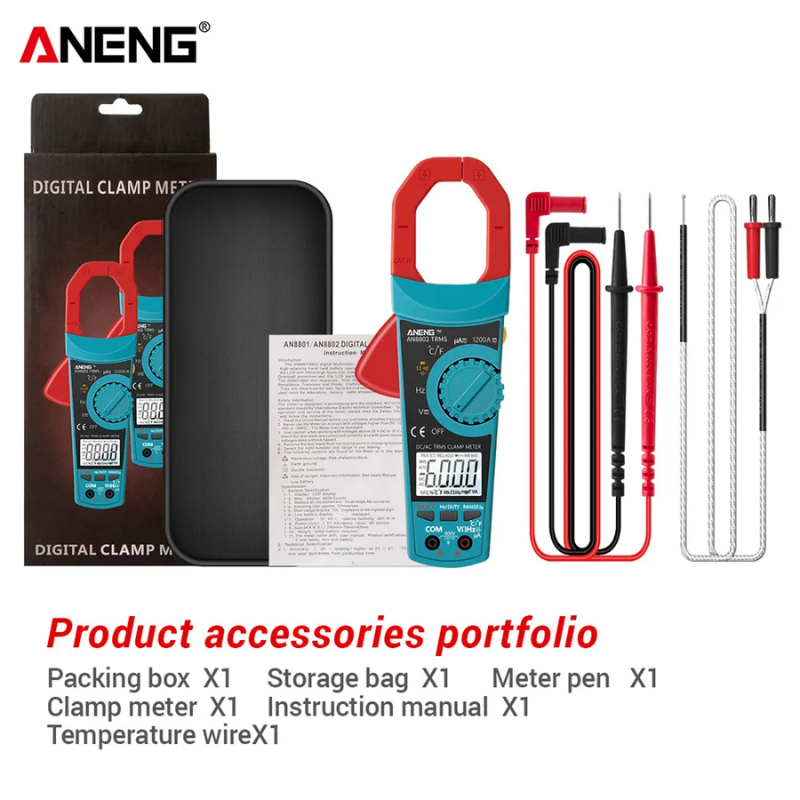

Package includes:
- 1 x Multimeter
- 2 x Test leads
- 1 x Temperature sensor cable
- 1 x Storage bag
- 1 x User manual
