MC4 BRANCH CONNECTOR FOR PARALLEL SOLAR PANELS - MULTIBRANCH

SKU: AR-000345
Availability: In Stock
Product Type: Branch Connector
Rs.1,000.00
Rs.1,500.00
Rs.1,000.00
Save Rs.500.00
Type: 2 to 1
Subtotal: Rs.1,000.00
  • Alladin Store

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

Shipping

You have to pay Partial Payment for order confirmation

MC4 BRANCH CONNECTOR FOR PARALLEL SOLAR PANELS - MULTIBRANCH

MC4 BRANCH CONNECTOR FOR PARALLEL SOLAR PANELS - MULTIBRANCH

Rs.1,500.00 Rs.1,000.00

MC4 BRANCH CONNECTOR FOR PARALLEL SOLAR PANELS - MULTIBRANCH

Rs.1,500.00 Rs.1,000.00
Type: 2 to 1

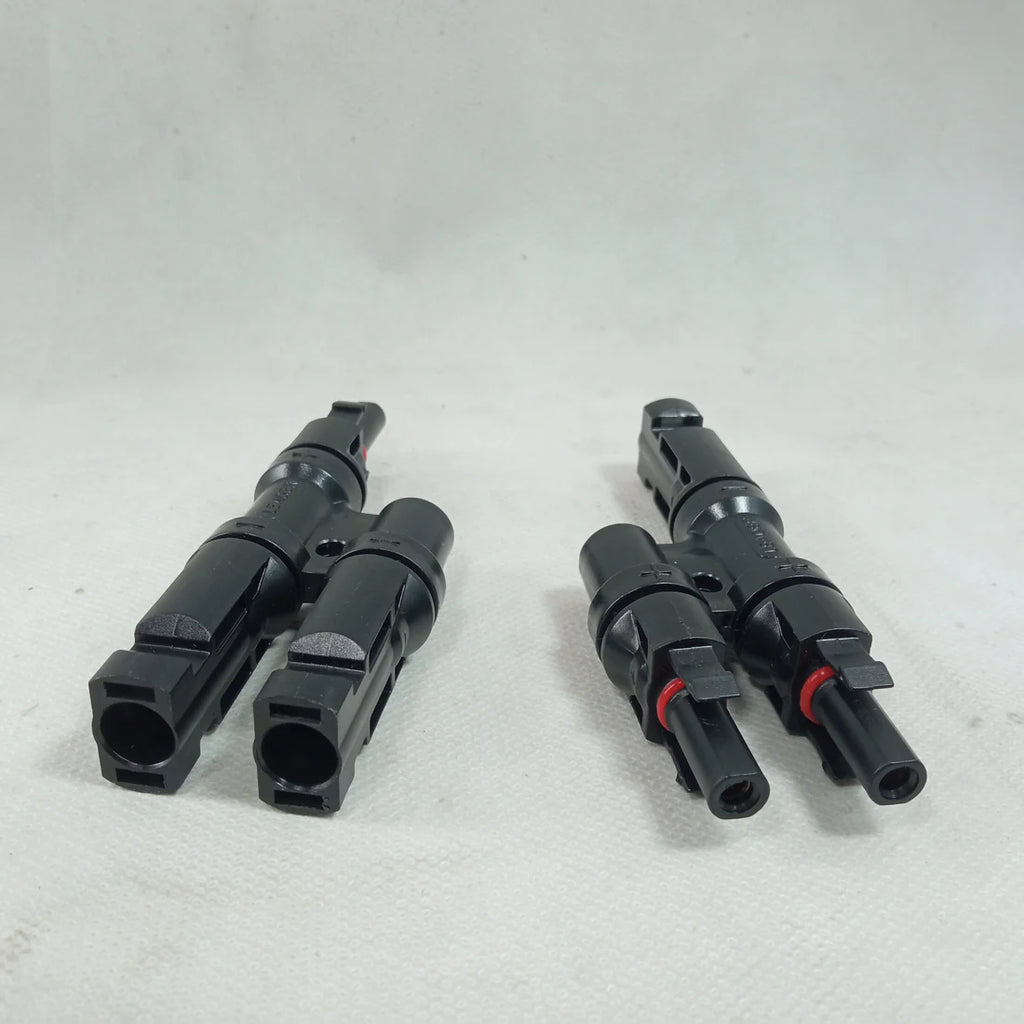

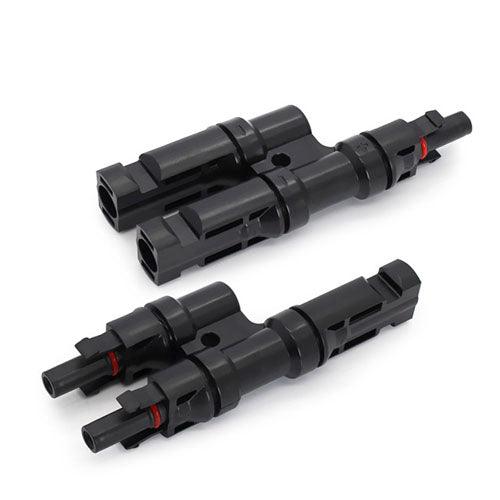

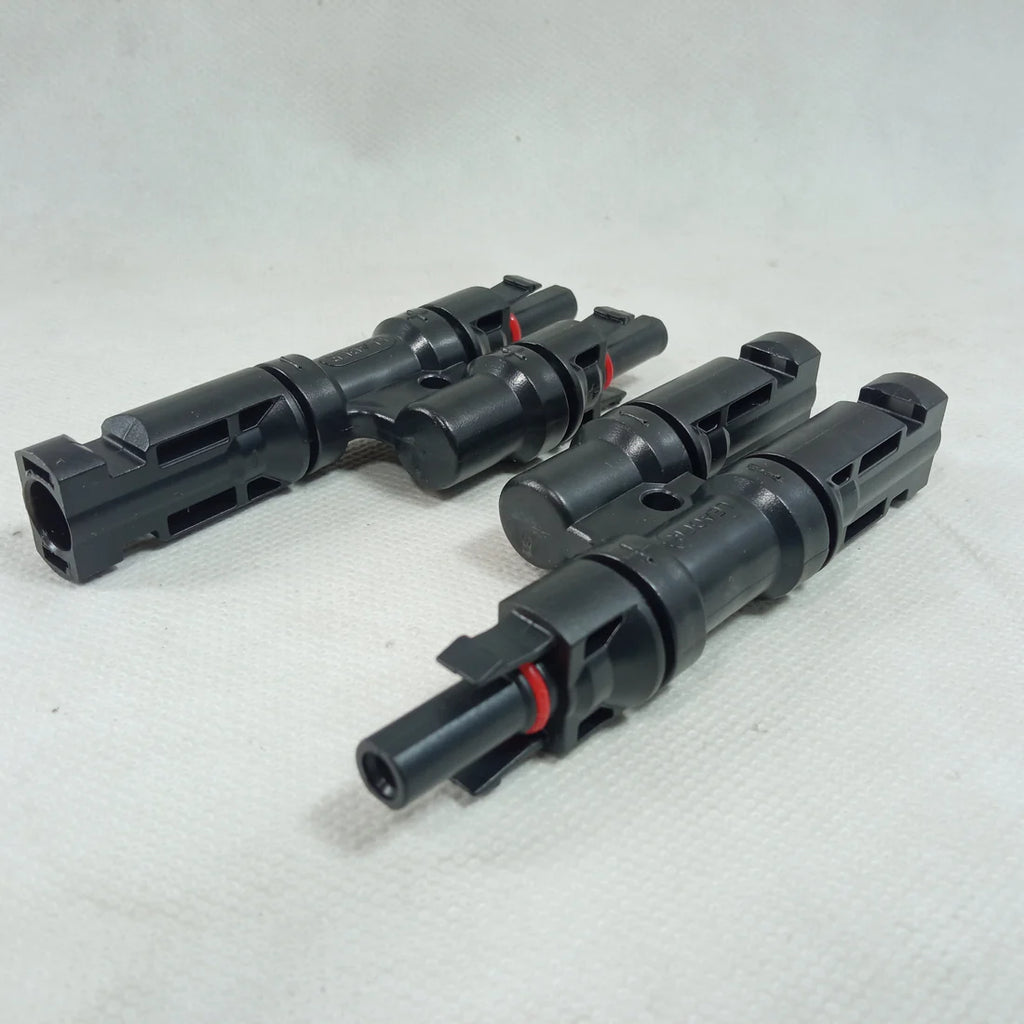

The Multi-branch connectors with 2 inputs create a parallel connection between two solar panels. Increase the current rating of the PV string with safe and water-proof connectors. Ideal for off grid , grid tie and hybrid installations.

  • Insulation material PPO
  • Rated Voltage 1500V DC
  • Rated Current 50A
  • Test voltage 6KV(50Hz,1Min)
  • Contact material copper, tin-plated
  • Contact resistance less than 0.5 m ohm
  • Degree of protection IP67
  • Pin dimension 4.0 MM
  • Compatible Solar cable 2.5/4.0 /6.0 mm² (14/12/10 AWG)
